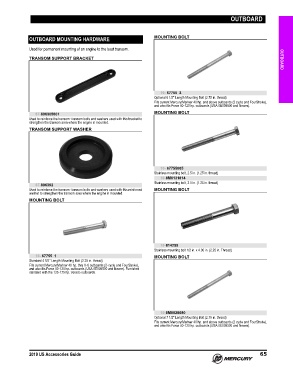

Page 78 - US ACCESSORIES GUIDE (2019)

OUTBOARD

OUTBOARD MOUNTING HARDWARE MOUNTING BOLT

Used for permanent mounting of an engine to the boat transom.

TRANSOM SUPPORT BRACKET OUTBOARD

10- 67755 2
Optional 6 1/2" Length Mounting Bolt (2.75 in. thread)
Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).
67-896305001 MOUNTING BOLT
Used to reinforce the transom‑ transom bolts and washers used with this bracket to
strengthen the transom area where the engine in mounted.
TRANSOM SUPPORT WASHER

10- 67755005
Stainless mounting bolt, 2.5 in. (1.25 in. thread)
10-8M0131814
Stainless mounting bolt, 3.5 in. (1.25 in. thread)
67-896392
Used to reinforce the transom‑ transom bolts and washers used with this reinforced MOUNTING BOLT
washer to strengthen the transom area where the engine in mounted.
MOUNTING BOLT

10-814259
Stainless mounting bolt 1/2 in. x 4.00 in. (2.25 in. Thread)
10- 67755 1 MOUNTING BOLT
Standard 4 1/2" Length Mounting Bolt (2.25 in. thread)
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). Furnished
standard with the 135‑175 hp. Verado outboards.

10-8M0028080
Optional 7 1/2" Length Mounting Bolt (2.75 in. thread)
Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).

2019 US Accessories Guide 65
