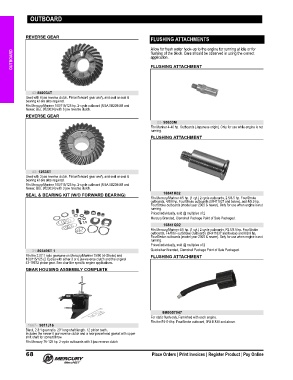

Page 81 - US ACCESSORIES GUIDE (2019)

OUTBOARD

REVERSE GEAR
FLUSHING ATTACHMENTS
Allow for fresh water hook‑up to the engine for running at idle or for
OUTBOARD application.
flushing of the block. Care should be observed in using the correct

FLUSHING ATTACHMENT

43-850034T
Used with 6 jaw reverse clutch. Pinion/forward gear ass'y. and seal or seal &
bearing kit are also required.
Fits Mercury/Mariner 100/115/125 hp. 2‑cycle outboard (USA 0B209468 and
Newer, BEL 9523034) with 6 jaw reverse clutch.
REVERSE GEAR
22- 95633M
Fits Mariner 4‑40 hp. Outboards (Japanese origin). Only for use while engine is not
running.
FLUSHING ATTACHMENT

43- 12635T
Used with 3 jaw reverse clutch. Pinion/forward gear ass'y. and seal or seal &
bearing kit are also required.
Fits Mercury/Mariner 100/115/125 hp. 2‑cycle outboard (USA 0B209468 and
Newer, BEL 9523034) with 3 jaw reverse clutch.
16841K02
SEAL & BEARING KIT (W/O FORWARD BEARING)
Fits Mercury/Mariner 4/5 hp. (1 cyl.) 2 cycle outboards, 2.5/3.5 hp. FourStroke
outboards, 4/5/6 hp. FourStroke outboards (0R411837 and below), and 8/9.9 hp.
FourStroke outboards (model year 2005 & newer). Only for use when engine is not
running.
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
16841Q02
Fits Mercury/Mariner 4/5 hp. (1 cyl.) 2 cycle outboards, F2.5/3.5 hp. FourStroke
outboards, F4/5/6 FourStroke Outboards (0R411837 and below) and 8/9.9 hp.
FourStroke outboards (model year 2005 & newer). Only for use when engine is not
running.
Priced individually, sold @ multiples of 2
31-803496T 1 Quicksilver Branded, Clamshell Package Point of Sale Packaged.
Fits the 2.07:1 ratio gearcase on Mercury/Mariner 75/90 (4‑Stroke) and FLUSHING ATTACHMENT
100/115/125 (2 Cycle) with either 3 or 6 jaw reverse clutch and the original
43‑19672 pinion gear. See chart for specific engine applications.
GEAR HOUSING ASSEMBLY COMPLETE

8M0057047
For static flush only. Furnished with each engine.
Fits the F4‑5‑6hp. FourStroke outboard, 0R411838 and above.
1667- 9011J16
Black, 2.3:1 gear ratio. 20" long shaft length. 12 pinion teeth.
Includes the newer 6 jaw reverse clutch and a new powerhead gasket with upper
shift shaft for correct throw
Fits Mercury 75‑125 hp. 2‑cycle outboards with 3 jaw reverse clutch
