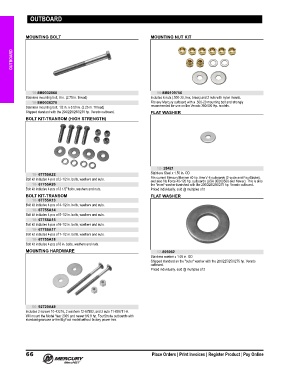

Page 79 - US ACCESSORIES GUIDE (2019)

OUTBOARD

MOUNTING BOLT MOUNTING NUT KIT

OUTBOARD

10-8M0032860 98-8M0109756
Stainless mounting bolt, 8 in. (2.75 in. thread) Includes 6 nuts (.500‑20, hex, brass) and 2 nuts with nylon inserts.
10-8M0038370 Fits any Mercury outboard with a .500‑20 mounting bolt and strongly
Stainless mounting bolt, 1/2 in. x 5.50 in. (3.25 in. Thread) recommended for use on the Verado 350/400 Hp. models.
Shipped standard with the 200/225/250/275 hp. Verado outboard. FLAT WASHER
BOLT KIT-TRANSOM (HIGH STRENGTH)

12- 28421
10- 67755A22 Stainless Steel x 1.50 in. OD
Bolt kit includes 4 pcs of 2‑1/2 in. bolts, washers and nuts. Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). This is also
10- 67755A26 the "inner" washer furnished with the 200/225/250/275 hp. Verado outboard.
Bolt kit includes 4 pcs of 3 1/2" bolts, washers and nuts. Priced individually, sold @ multiples of 5
BOLT KIT-TRANSOM FLAT WASHER
10- 67755A13
Bolt kit includes 4 pcs of 4‑1/2 in. bolts, washers and nuts.
10- 67755A14
Bolt kit includes 4 pcs of 5‑1/2 in. bolts, washers and nuts.
10- 67755A15
Bolt kit includes 4 pcs of 6‑1/2 in. bolts, washers and nuts.
10- 67755A17
Bolt kit includes 4 pcs of 7‑1/2 in. bolts, washers and nuts.
10- 67755A18
Bolt kit includes 4 pcs of 8 in. bolts, washers and nuts.
MOUNTING HARDWARE 12-895062
Stainless washer x 1.06 in. OD
Shipped standard as the "outer" washer with the 200/225/250/275 hp. Verado
outboard.
Priced individually, sold @ multiples of 2

56- 92729A49
Includes 2 screws 10‑43216, 2 washers 12‑67983, and 2 nuts 11‑826711‑8.
Will mount the Model Year 2005 and newer 8/9.9 hp. FourStroke outboards with
standard gearcase or the BigFoot model without factory power trim.
