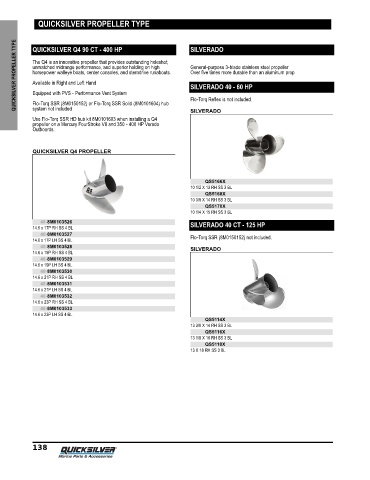

Page 143 - Quicksilver Marine Parts Guide (2020) - 8M0163275

QUICKSILVER PROPELLER TYPE

QUICKSILVER PROPELLER TYPE QUICKSILVER Q4 90 CT - 400 HP SILVERADO

The Q4 is an innovative propeller that provides outstanding holeshot,
General‑purpose 3‑blade stainless steel propeller
unmatched midrange performance, and superior holding on high
horsepower walleye boats, center consoles, and sterndrive runabouts.
Over five times more durable than an aluminum prop
Available in Right and Left Hand
SILVERADO 40 - 60 HP
Equipped with PVS ‑ Performance Vent System
Flo‑Torq SSR (8M0150152) or Flo‑Torq SSR Solid (8M0101604) hub
system not included
SILVERADO
Use Flo‑Torq SSR HD hub kit 8M0101603 when installing a Q4 Flo‑Torq Reflex is not included.
propeller on a Mercury FourStroke V8 and 350 ‑ 400 HP Verado
Outboards.

QUICKSILVER Q4 PROPELLER

QS5166X
10 1/2 X 13 RH SS 3 BL
QS5168X
10 3/8 X 14 RH SS 3 BL
QS5170X
10 1/4 X 15 RH SS 3 BL
48-8M0103526 SILVERADO 40 CT - 125 HP
14.6 x 17P RH SS 4 BL
48-8M0103527
14.6 x 17P LH SS 4 BL Flo‑Torq SSR (8M0150152) not included.
48-8M0103528 SILVERADO
14.6 x 19P RH SS 4 BL
48-8M0103529
14.6 x 19P LH SS 4 BL
48-8M0103530
14.6 x 21P RH SS 4 BL
48-8M0103531
14.6 x 21P LH SS 4 BL
48-8M0103532
14.6 x 23P RH SS 4 BL
48-8M0103533
14.6 x 23P LH SS 4 BL
QS5114X
13 3/8 X 14 RH SS 3 BL
QS5116X
13 1/8 X 16 RH SS 3 BL
QS5118X
13 X 18 RH SS 3 BL

138
