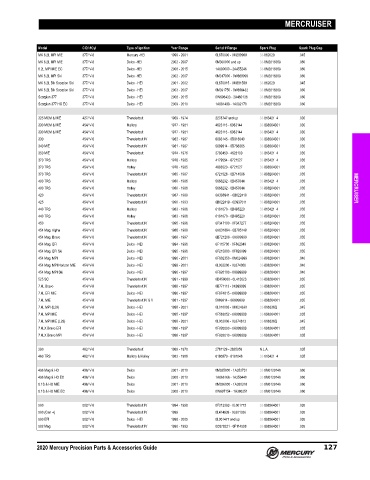

Page 136 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

Model CID/ #Cyl Type of Ignition Year Range Serial # Range Spark Plug Spark Plug Gap
MX 6.2L MPI MIE 377/ V-8 Mercury -HEI 1999 - 2001 0L670000 - 0M299999 33-862029 .045
MX 6.2L MPI MIE 377/ V-8 Delco -HEI 2002 - 2007 0M300000 and up 33-8M2018369 .060
6.2L MPI MIE EC 377/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455246 33-8M2018369 .060
MX 6.2L MPI Ski 377/ V-8 Delco -HEI 2002 - 2007 0M317000 - 0W689999 33-8M2018369 .060
MX 6.2L Blk Scorpion Ski 377/ V-8 Delco - HEI 2001 - 2002 0L670015 - 0M391599 33-862029 .045
MX 6.2L Blk Scorpion Ski 377/ V-8 Delco - HEI 2003 - 2007 0M391750 - 0W698432 33-8M2018369 .060
Scorpion 377 377/ V-8 Delco - HEI 2008 - 2015 0W698433 - 2A460138 33-8M2018369 .060
Scorpion 377 HO EC 377/ V-8 Delco - HEI 2009 - 2010 1A091488 - 1A092170 33-8M2018369 .060

325 MCM & MIE 427/ V-8 Thunderbolt 1969 - 1974 2278747 and up 33-813421 4 .035
330 MCM & MIE 454/ V-8 Mallory 1977 - 1981 4623115 - 6083144 33-898264001 .035
330 MCM & MIE 454/ V-8 Thunderbolt 1977 - 1981 4623115 - 6083144 33-813421 4 .035
330 454/ V-8 Thunderbolt IV 1982 - 1987 6083145 - 0B816540 33-898264001 .035
340 MIE 454/ V-8 Thunderbolt IV 1981 - 1987 5889914 - 0B788365 33-898264001 .035
350 MIE 454/ V-8 Thunderbolt 1974 - 1976 3780450 - 4623109 33-813421 4 .035
370 TRS 454/ V-8 Mallory 1978 - 1985 4179554 - 6721527 33-813421 4 .035
370 TRS 454/ V-8 Holley 1978 - 1985 4883520 - 6721527 33-898264001 .035
370 TRS 454/ V-8 Thunderbolt IV 1985 - 1987 6721528 - 0B714586 33-898264001 .035
400 TRS 454/ V-8 Mallory 1980 - 1986 5668232 - 0B457644 33-813421 4 .035
400 TRS 454/ V-8 Holley 1980 - 1986 5668232 - 0B457644 33-898264001 .035 MERCRUISER
420 454/ V-8 Thunderbolt IV 1987 - 1989 0A398941 - 0B622418 33-898264001 .035
425 454/ V-8 Thunderbolt IV 1990 - 1993 0B622419 - 0D937011 33-898264001 .035
440 TRS 454/ V-8 Mallory 1983 - 1986 6181070 - 0B485220 33-813421 4 .035
440 TRS 454/ V-8 Holley 1983 - 1986 6181070 - 0B485220 33-898264001 .035
450 454/ V-8 Thunderbolt IV 1995 - 1996 0F347100 - 0F347277 33-898264001 .035
454 Mag. Alpha 454/ V-8 Thunderbolt IV 1986 - 1988 0A631894 - 0B785148 33-898264001 .035
454 Mag. Bravo 454/ V-8 Thunderbolt IV 1988 - 1997 0B721206 - 0K999999 33-898264001 .035
454 Mag. EFI 454/ V-8 Delco - HEI 1994 - 1996 0F115700 - 0F802349 33-898264001 .035
454 Mag. EFI Ski 454/ V-8 Delco - HEI 1995 - 1996 0F215800 - 0F820099 33-898264001 .035
454 Mag. MPI 454/ V-8 Delco - HEI 1996 - 2001 0F802350 - 0M024999 33-898264001 .040
454 Mag. MPI Horizon MIE 454/ V-8 Delco - HEI 1998 - 2001 0L002200 - 0L674000 33-898264001 .040
454 Mag. MPI Ski 454/ V-8 Delco - HEI 1996 - 1997 0F820100 - 0K999999 33-898264001 .040
525 SC 454/ V-8 Thunderbolt IV 1991 - 1999 0D456000 - 0L415623 33-898264001 .035
7.4L Bravo 454/ V-8 Thunderbolt IV 1988 - 1997 0B771113 - 0K999999 33-898264001 .035
7.4L EFI MIE 454/ V-8 Delco - HEI 1996 - 1997 0F874815 - 0K999999 33-898264001 .035
7.4L MIE 454/ V-8 Thunderbolt IV & V 1981 - 1997 5889914 - 0K999999 33-898264001 .035
7.4L MPI (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L010003 - 0M024330 33-816336Q .045
7.4L MPI MIE 454/ V-8 Delco - HEI 1995 - 1997 0F563052 - 0K999999 33-898264001 .035
7.4L MPI MIE (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L002006 - 0L674613 33-816336Q .045
7.4LX Bravo EFI 454/ V-8 Delco - HEI 1996 - 1997 0F820000 - 0K999999 33-898264001 .035
7.4LX Bravo MPI 454/ V-8 Delco - HEI 1996 - 1997 0F602010 - 0K999999 33-898264001 .035

390 482/ V-8 Thunderbolt 1969 - 1970 2781129 - 2825059 N.L.A. .035
460 TRS 482/ V-8 Mallory & Holley 1983 - 1986 6180970 - 6181046 33-813421 4 .035

496 Mag & HO 496/ V-8 Delco 2001 - 2010 0M025000 - 1A352731 33-8M0129146 .060
496 Mag & HO EC 496/ V-8 Delco 2008 - 2010 1A066166 - 1A350440 33-8M0129146 .060
8.1S & HO MIE 496/ V-8 Delco 2001 - 2010 0M026000 - 1A380318 33-8M0129146 .060
8.1S & HO MIE EC 496/ V-8 Delco 2008 - 2010 0W697154 - 1A380251 33-8M0129146 .060

500 502/ V-8 Thunderbolt IV 1994 - 1998 0F213293 - 0L001772 33-898264001 .035
500 (Gen +) 502/ V-8 Thunderbolt IV 1999 0L414639 - 0L601036 33-898264001 .035
500 EFI 502/ V-8 Delco - HEI 1998 - 2005 0L001477 and up 33-898264001 .035
502 Mag. 502/ V-8 Thunderbolt IV 1990 - 1993 0C878221 - 0F114528 33-898264001 .035

2020 Mercury Precision Parts & Accessories Guide 127
