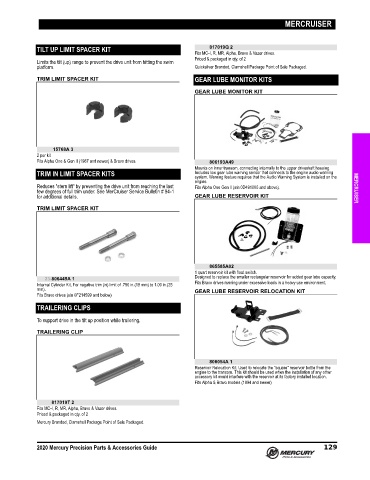

Page 138 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

TILT UP LIMIT SPACER KIT 817019Q 2
Fits MC‑I, R, MR, Alpha, Bravo & Vazer drives.
Priced & packaged in qty. of 2
Limits the tilt (up) range to prevent the drive unit from hitting the swim
platform. Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TRIM LIMIT SPACER KIT GEAR LUBE MONITOR KITS
GEAR LUBE MONITOR KIT

15768A 3
2 per kit
Fits Alpha One & Gen II (1987 and newer) & Bravo drives. 806193A49
Mounts on inner transom, connecting internally to the upper driveshaft housing.
TRIM IN LIMIT SPACER KITS Includes low gear lube warning sensor that connects to the engine audio warning
system. Warning feature requires that the Audio Warning System is installed on the
engine.
Reduces "stern lift" by preventing the drive unit from reaching the last Fits Alpha One Gen II (s/n 0D491000 and above).
few degrees of full trim under. See MerCruiser Service Bulletin # 94‑1 MERCRUISER
for additional details. GEAR LUBE RESERVOIR KIT
TRIM LIMIT SPACER KIT

865585A02
1 quart reservoir kit with float switch.
23-806445A 1 Designed to replace the smaller rectangular reservoir for added gear lube capacity.
Internal Cylinder Kit, For negative trim (in) limit of .750 in.(19 mm) to 1.00 in.(25 Fits Bravo drives running under excessive loads in a heavy use environment.
mm). GEAR LUBE RESERVOIR RELOCATION KIT
Fits Bravo drives (s/n 0F214599 and below)

TRAILERING CLIPS
To support drive in the tilt up position while trailering.

TRAILERING CLIP

806054A 1
Reservoir Relocation Kit. Used to relocate the "square" reservoir bottle from the
engine to the transom. This kit should be used when the installation of any other
accessory kit would interfere with the reservoir at its factory installed location.
Fits Alpha & Bravo models (1994 and newer)

817019T 2
Fits MC‑I, R, MR, Alpha, Bravo & Vazer drives.
Priced & packaged in qty. of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.

2020 Mercury Precision Parts & Accessories Guide 129
