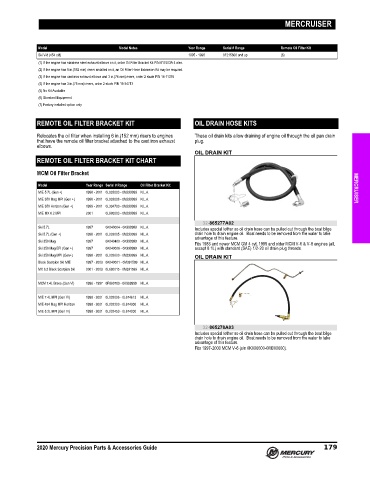

Page 188 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

Model Model Notes Year Range Serial # Range Remote Oil Filter Kit
Ski V-8 (454 cid) 1995 - 1996 0F215800 and up (6)
(1) If the engine has stainless steel exhaust elbows on it, order Oil Filter Bracket Kit P/N 817403A 4 also.
(2) If the engine has 6 in.(152 mm) risers installed on it, an Oil Filter Hose Extension Kit may be required.
(3) If the engine has cast iron exhaust elbows and 3 in.(76 mm) risers, order 2 studs P/N 16-11376
(4) If the engine has 3 in.(76 mm) risers, order 2 studs P/N 16-34713
(5) No Kit Available
(6) Standard Equipment
(7) Factory installed option only

REMOTE OIL FILTER BRACKET KIT OIL DRAIN HOSE KITS
Relocates the oil filter when installing 6 in.(152 mm) risers to engines These oil drain kits allow draining of engine oil through the oil pan drain
that have the remote oil filter bracket attached to the cast iron exhaust plug.
elbows.
OIL DRAIN KIT
REMOTE OIL FILTER BRACKET KIT CHART

MCM Oil Filter Bracket

Model Year Range Serial # Range Oil Filter Bracket Kit
MIE 5.7L (Gen +) 1998 - 2001 0L002003 - 0M299999 N.L.A. MERCRUISER
MIE 350 Mag MPI (Gen +) 1998 - 2001 0L002008 - 0M299999 N.L.A.
MIE 350 Horizon (Gen +) 1999 - 2001 0L304700 - 0M299999 N.L.A.
MIE MX 6.2 MPI 2001 0L680003 - 0M299999 N.L.A.

32-865277A02
Ski 5.7L 1997 0K040004 - 0K999999 N.L.A. Includes special tether so oil drain hose can be pulled out through the boat bilge
Ski 5.7L (Gen +) 1998 - 2001 0L002005 - 0M299999 N.L.A. drain hole to drain engine oil. Boat needs to be removed from the water to take
advantage of this feature.
Ski 350 Mag 1997 0K040400 - 0K999999 N.L.A.
Fits 1983 and newer MCM GM 4 cyl, 1995 and older MCM V‑6 & V‑8 engines (all,
Ski 350 Mag EFI (Gen +) 1997 0K040006 - 0K999999 N.L.A. except 8.1L) with standard (SAE) 1/2‑20 oil drain plug threads.
Ski 350 Mag MPI (Gen+) 1998 - 2001 0L002600 - 0M299999 N.L.A. OIL DRAIN KIT
Black Scorpion Ski MIE 1997 - 2003 0K040001 - 0M391599 N.L.A.
MX 6.2 Black Scorpion Ski 2001 - 2003 0L680015 - 0M391599 N.L.A.

MCM 7.4L Bravo (Gen VI) 1996 - 1997 0F800700 - 0K999999 N.L.A.

MIE 7.4L MPI (Gen VI) 1998 - 2001 0L002006 - 0L674613 N.L.A.
MIE 454 Mag MPI Horizon 1998 - 2001 0L002200 - 0L674000 N.L.A.
MIE 8.2L MPI (Gen VI) 1998 - 2001 0L002450 - 0L674200 N.L.A.

32-865278A03
Includes special tether so oil drain hose can be pulled out through the boat bilge
drain hole to drain engine oil. Boat needs to be removed from the water to take
advantage of this feature.
Fits 1997‑2000 MCM V‑6 (s/n 0K000000‑0M000000).

2020 Mercury Precision Parts & Accessories Guide 179
