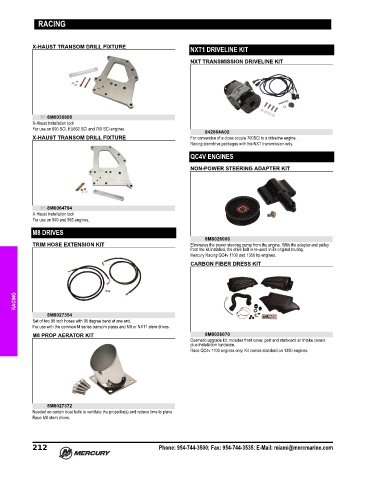

Page 221 - Latin America Accessories Guide (2020) - 8M0163252

RACING

X-HAUST TRANSOM DRILL FIXTURE
NXT1 DRIVELINE KIT
NXT TRANSMISSION DRIVELINE KIT

91-8M0036608
X‑Haust installation tool
For use on 600 SCi, EU662 SCi and 700 SCi engines.
842064A02
X-HAUST TRANSOM DRILL FIXTURE For conversion of a close couple 700SCi to a driveline engine .
Racing sterndrive packages with the NXT transmission only.
QC4V ENGINES

NON-POWER STEERING ADAPTER KIT

91-8M0064794
X‑Haust installation tool
For use on 540 and 565 engines.
M8 DRIVES
8M8026006
TRIM HOSE EXTENSION KIT Eliminates the power steering pump from the engine. With the adapter and pulley
from the kit installed, the drive belt is re‑used in its original routing.
Mercury Racing QC4v 1100 and 1350 hp engines.
CARBON FIBER DRESS KIT

RACING

8M8027354
Set of two 96 inch hoses with 90 degree bend at one end.
For use with the common M series transom plates and M8 or NXT1 stern drives.
M8 PROP AERATOR KIT 8M8026070
Cosmetic upgrade kit. Includes front cover, port and starboard air intake covers
plus installation hardware.
Race QC4v 1100 engines only. Kit comes standard on 1350 engines.

8M8027372
Needed on certain boat hulls to ventilate the propellor(s) and reduce time to plane.
Race M8 stern drives.

212 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
