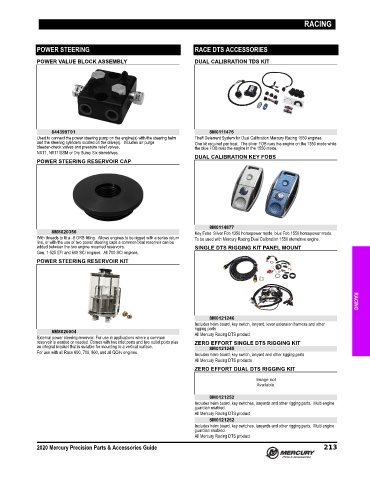

Page 222 - Latin America Accessories Guide (2020) - 8M0163252

RACING

POWER STEERING RACE DTS ACCESSORIES

POWER VALUE BLOCK ASSEMBLY DUAL CALIBRATION TDS KIT

844399T01 8M0111476
Used to connect the power steering pump on the engine(s) with the steering helm Theft Deterrent System for Dual Calibration Mercury Racing 1550 engines.
and the steering cylinders located on the drive(s). Includes air purge One kit required per boat. The silver FOB runs the engine on the 1350 mode while
bleeder‑check valves and pressure relief valves. the blue FOB runs the engine in the 1550 mode.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.
DUAL CALIBRATION KEY FOBS
POWER STEERING RESERVOIR CAP

8M0114877
8M8020356 Key Fobs. Silver Fob 1350 horsepower mode, blue Fob 1550 horsepower mode.
With threads to fit a ‑8 ORB fitting. Allows engines to be rigged with a series return To be used with Mercury Racing Dual Calibration 1550 sterndrive engine.
line, or with the use of two power steering caps a common boat reservoir can be
added between the two engine mounted reservoirs. SINGLE DTS RIGGING KIT PANEL MOUNT
Gen. 1 525 EFI and 600 SCI engines. All 700 SCI engines.
POWER STEERING RESERVOIR KIT

8M0121246 RACING
Includes helm board, key switch, lanyard, lever extension harness and other
rigging parts
8M8026004 All Mercury Racing DTS product
External power steering reservoir. For use in applications where a common
reservoir is wanted or needed. Comes with two inlet ports and two outlet ports plus ZERO EFFORT SINGLE DTS RIGGING KIT
an integral bracket that is suitable for mounting to a vertical surface. 8M0121245
For use with all Race 600, 700, 860, and all QC4v engines. Includes helm board, key switch, lanyard and other rigging parts
All Mercury Racing DTS products
ZERO EFFORT DUAL DTS RIGGING KIT

8M0121252
Includes helm board, key switches, lanyards and other rigging parts. Multi engine
guardian enabled.
All Mercury Racing DTS product
8M0121252
Includes helm board, key switches, lanyards and other rigging parts. Multi engine
guardian enabled.
All Mercury Racing DTS product

2020 Mercury Precision Parts & Accessories Guide 213
