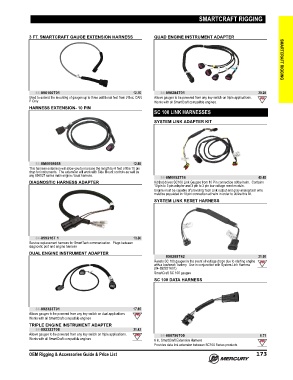

Page 186 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT RIGGING

3 FT. SMARTCRAFT GAUGE EXTENSION HARNESS QUAD ENGINE INSTRUMENT ADAPTER SMARTCRAFT RIGGING

84-898160T01 12.70 84-898284T01 39.29
Used to extend the mounting of gauges up to three additional feet from J Box. CAN Allows gauges to be powered from any key switch on triple applications.
P Only Works with all SmartCraft compatible engines.
HARNESS EXTENSION- 10 PIN
SC 100 LINK HARNESSES
SYSTEM LINK ADAPTER KIT

84-8M0058668 12.88
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness.
84-8M0052774 45.48
DIAGNOSTIC HARNESS ADAPTER Kit that drives SC100 Link Gauges from 10 Pin connection at the helm. Contains
10 pin to 3 pin adapter and 3 pin to 3 pin low voltage reset module.
Engine must be capable of providing Tach Link output and gray analog tach wire
must be populated in 10 pin connection at helm in order to utilize this kit.
SYSTEM LINK RESET HARNESS

84-859316T 1 13.30
Service replacement harness for SmartTach communication. Plugs between
diagnostic port and engine harness
DUAL ENGINE INSTRUMENT ADAPTER
898289T42 31.50
Resets SC 100 gauges in the event of voltage drops due to starting engine
with a low/weak battery. Use in conjunction with System Link Harness
(84‑892821K01)
SmartCraft SC 100 gauges
SC 100 DATA HARNESS

84-892323T01 17.85
Allows gauges to be powered from any key switch on dual applications
Works with all SmartCraft compatible engines
TRIPLE ENGINE INSTRUMENT ADAPTER
84-892323T08 31.43
Allows gauges to be powered from any key switch on triple applications. 84-880756T05 6.71
Works with all SmartCraft compatible engines 6 in. SmartCraft Extension Harness
Provides data link extension between SC100 Series products.

OEM Rigging & Accessories Guide & Price List 173
