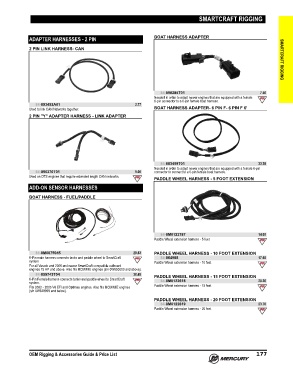

Page 190 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT RIGGING

ADAPTER HARNESSES - 2 PIN BOAT HARNESS ADAPTER

2 PIN LINK HARNESS- CAN SMARTCRAFT RIGGING

84-898285T01 7.56
Needed in order to adapt newer engines that are equipped with a female
6‑pin connector to a 6‑pin female boat harness.
84-893452A01 3.77
Used to link CAN Networks together. BOAT HARNESS ADAPTER- 6 PIN F- 6 PIN F 6'
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER

84-883459T01 33.38
Needed in order to adapt newer engines that are equipped with a female 6‑pin
84-896370T01 9.08 connector to connect to a 6‑pin female boat harness.
Used on DTS engines that require extended length CAN networks.
PADDLE WHEEL HARNESS - 5 FOOT EXTENSION
ADD-ON SENSOR HARNESSES

BOAT HARNESS - FUEL/PADDLE

84-8M0122787 14.08
Paddle Wheel extension harness ‑ 5 feet

84-8M0075945 29.83 PADDLE WHEEL HARNESS - 10 FOOT EXTENSION
6‑Pin male harness connects tanks and paddle wheel to SmartCraft 84-864988 17.60
system Paddle Wheel extension harness ‑ 10 feet
For all Verado and 2006 and newer SmartCraft compatible outboard
engines 75 HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above).
84-859743T04 30.48 PADDLE WHEEL HARNESS - 15 FOOT EXTENSION
6‑Pin Female harness connects tanks and paddle wheel to SmartCraft 84-8M0122618 20.26
system.
Fits 2002 ‑ 2005 V6 EFI and Optimax engines. Also fits MCM/MIE engines Paddle Wheel extension harness ‑ 15 feet
(s/n 0W649999 and below).

PADDLE WHEEL HARNESS - 20 FOOT EXTENSION
84-8M0122619 23.70
Paddle Wheel extension harness ‑ 20 feet

OEM Rigging & Accessories Guide & Price List 177
