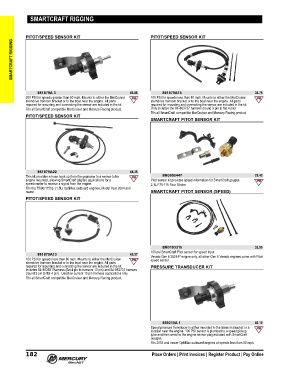

Page 195 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT RIGGING

PITOT/SPEED SENSOR KIT PITOT/SPEED SENSOR KIT
SMARTCRAFT RIGGING

881879A 3 46.88 881879A15 36.76
200 PSI for speeds greater than 80 mph. Mounts to either the MerCruiser 100 PSI for speeds less than 80 mph. Mounts to either the MerCruiser
sterndrive transom bracket or to the boat near the engine. All parts sterndrive transom bracket or to the boat near the engine. All parts
required for mounting and connecting the sensor are included in the kit. required for mounting and connecting the sensor are included in the kit.
Fits all SmartCraft compatible MerCruiser and Mercury Racing product. Only includes the 84‑863737 harness (round 3 pin to flat 4 pin)
Fits all SmartCraft compatible MerCruiser and Mercury Racing product.
PITOT/SPEED SENSOR KIT
SMARTCRAFT PITOT SENSOR KIT

881879A22 44.36
This kit provides a hose hook up from the gearcase to a sensor to be 8M0090447 25.42
engine mounted, allowing SmartCraft (digital) applications for a Pitot sensor kit provides speed information for SmartCraft gauges.
speedometer to receive a signal from the engine. 2.1L F75‑115 Four Stroke
Fits the 75/90/115hp. (1.5L) OptiMax outboard engines, Model Year 2004 and
newer. SMARTCRAFT PITOT SENSOR (SPEED)
PITOT/SPEED SENSOR KIT

8M0103315 32.55
100 psi SmartCraft Pitot sensor for speed input
881879A13 45.57 Verado Gen 5 350 HP engine only, all other Gen 5 Verado engines come with Pitot
100 PSI for speeds less than 80 mph. Mounts to either the MerCruiser speed sensor
sterndrive transom bracket or to the boat near the engine. All parts
required for mounting and connecting the sensor are included in the kit. PRESSURE TRANSDUCER KIT
Includes 84‑863931 harness (flat 4 pin to transom 10 pin) and 84‑863737 harness
(round 3 pin to flat 4 pin). Used on current 10 pin harness applications only.
Fits all SmartCraft compatible MerCruiser and Mercury Racing product.

859210A 1 45.10
Speed pressure transducer is either mounted to the transom bracket or a
location near the engine. 100 PSI sensor is plumbed to a speed pickup
tube and then wired to the engine sensor plug included with SmartCraft
Gauges.
Fits 2002 and newer OptiMax outboard engines at speeds less than 80 mph.
