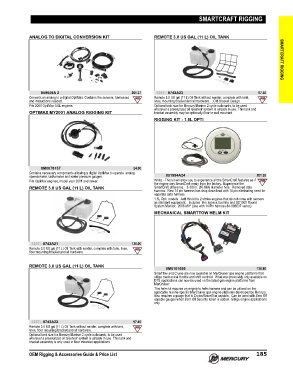

Page 198 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT RIGGING

ANALOG TO DIGITAL CONVERSION KIT REMOTE 3.0 US GAL (11 L) OIL TANK SMARTCRAFT RIGGING

859649A 2 261.37 1257- 8742A23 97.50
Converts an analog to a digital OptiMax. Contains the sensors, harnesses Remote 3.0 US gal (11 L) Oil Tank without sender, complete with tank,
and instructions needed. lines, mounting bracket and all hardware. Old Bracket Design
Fits 2000 OptiMax 3.0L engines. Optional tank size for Mercury/Mariner 2 cycle outboards, to be used
wherever a pressurized oil reservoir system is already in use. This tank and
OPTIMAX MY2001 ANALOG RIGGING KIT bracket assembly may be optionally floor or wall mounted.
RIGGING KIT - 1.5L OPTI

8M0078157 24.00
Contains necessary components allowing a digital OptiMax to operate analog
speedometer, tachometer and water pressure gauges. 891954A24 201.38
Fits OptiMax engines, model year 2001 and newer. White ‑ This kit will allow you to experience all the SmartCraft features as if
the engine was SmartCraft ready from the factory. Experience the
REMOTE 3.0 US GAL (11 L) OIL TANK SmartCraft difference. 3‑3/8 in. (85 MM) diameter hole. Removed data
harness. New 14 pin harness has drop down lead with 10 pin eliminating need for
separate data harness.
1.5L Opti models. Add this kit to 2 stroke engines that do not come with sensors
as standard equipment. Includes trim sensor, fuel line and SC1000 Round
System Monitor. 2006 M/Y (Use with 14 Pin harness 84‑896537 series)
MECHANICAL SMARTTOW HELM KIT

1257- 8742A21 135.00
Remote 3.0 US gal (11 L) Oil Tank with sender, complete with tank, lines,
floor mounting bracket and all hardware.

REMOTE 3.0 US GAL (11 L) OIL TANK
8M0101650 138.86
SmartTow and Cruise are now available on MerCruiser gas engine platforms that
utilize mechanical throttle and shift controls! What was previously only available on
DTS applications can now be used on the latest gas engine platforms from
MerCruiser
This helm kit requires an engine to helm harness and can be utilized on the
applicable marine‑specific MerCruiser gas engine platforms developed by Mercury.
Also requires a gauge that is Cruise/SmartTow capable. Can be used with Zero Off
capable gauges when Zero Off Security token is added. Sinlge engine applications
only

1257- 8742A22 97.45
Remote 3.0 US gal (11 L) Oil Tank without sender, complete with tank,
lines, floor mounting bracket and all hardware.
Optional tank size for Mercury/Mariner 2 cycle outboards, to be used
wherever a pressurized oil reservoir system is already in use. This tank and
bracket assembly is only used in floor mounted applications.

OEM Rigging & Accessories Guide & Price List 185
