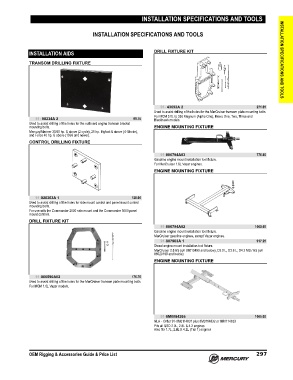

INSTALLATION SPECIFICATIONS AND TOOLS

INSTALLATION SPECIFICATIONS AND TOOLS

INSTALLATION AIDS DRILL FIXTURE KIT

TRANSOM DRILLING FIXTURE INSTALLATION SPECIFICATIONS AND TOOLS

91- 43693A 2 271.65
Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
For MCM 3.0L to 350 Magnum (Alpha One), Bravo One, Two, Three and
91- 98234A 2 99.75 Blackhawk models.
Used to assist drilling of the holes for the outboard engine transom bracket
mounting bolts. ENGINE MOUNTING FIXTURE
Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke),
and Force 40 hp. & above (1993 and newer).
CONTROL DRILLING FIXTURE

91-806794A03 776.85
Gasoline engine mount installation tool fixture.
For MerCruiser 1.6L Vazer engines.
ENGINE MOUNTING FIXTURE

91-828363A 1 128.95
Used to assist drilling of the holes for side mount control and panel mount control
mounting bolts.
For use with the Commander 2000 side mount and the Commander 3000 panel
mount controls.
DRILL FIXTURE KIT
91-806794A02 1060.65
Gasoline engine mount installation tool fixture.
MerCruiser gasoline engines, except Vazer engines.
91-807903A 1 917.25
Diesel engine mount installation tool fixture.
MerCruiser 2.8 ES (s/n 88010499 and below), D3.0 L, D3.6 L; D4.2 MS / ES (s/n
88020199 and below)
ENGINE MOUNTING FIXTURE

91-866590A02 175.75
Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
For MCM 1.6L Vazer models.

91-8M0084205 1065.00
NLA ‑ Order 91‑8M0114831 plus 8M0114832 or 8M0114833
Fits all QSD 2.0L, 2.8L & 4.2 engines
Also fits 1.7L, 2.8L & 4.2L (Tier 1) engines

OEM Rigging & Accessories Guide & Price List 297
