INSTALLATION SPECIFICATIONS AND TOOLS

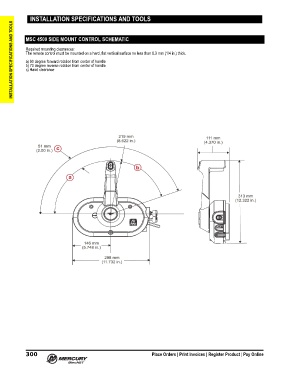

INSTALLATION SPECIFICATIONS AND TOOLS MSC 4500 SIDE MOUNT CONTROL SCHEMATIC
Required mounting clearances:
The remote control must be mounted on a hard, flat vertical surface no less than 6.3 mm (1/4 in.) thick.
a) 90 degree forward rotation from center of handle
b) 70 degree reverse rotation from center of handle
c) Hand clearance
