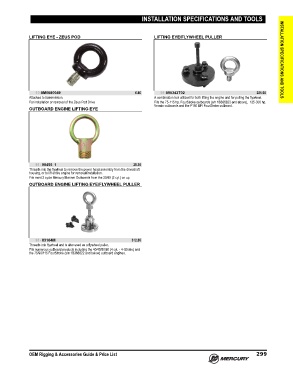

Page 312 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

INSTALLATION SPECIFICATIONS AND TOOLS

LIFTING EYE - ZEUS POD LIFTING EYE/FLYWHEEL PULLER INSTALLATION SPECIFICATIONS AND TOOLS

10-8M0080049 6.80 91-895343T02 225.00
Attaches to transmission. A combination tool utilized for both lifting the engine and for pulling the flywheel.
For installation or removal of the Zeus Pod Drive Fits the 75‑115 hp. FourStroke outboards (s/n 1B366823 and above), 135‑300 hp.
Verado outboards and the F150 EFI FourStroke outboard.
OUTBOARD ENGINE LIFTING EYE

91- 90455 1 28.35
Threads into the flywheel to remove the power head assembly from the driveshaft
housing, or to lift entire engine for removal/installation.
Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.
OUTBOARD ENGINE LIFTING EYE/FLYWHEEL PULLER

91- 83164M 312.65
Threads into flywheel and is also used as a flywheel puller.
Fits numerous outboard products including the 40/45/50/60 (4 cyl. ‑ 4‑Stroke) and
the 75/90/115 FourStroke (s/n 1B366822 and below) outboard engines.

OEM Rigging & Accessories Guide & Price List 299
