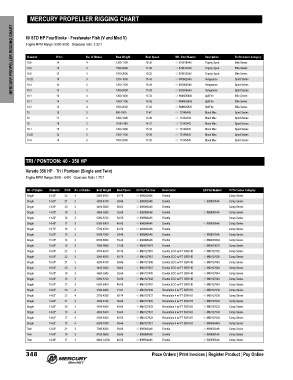

MERCURY PROPELLER RIGGING CHART
MERCURY PROPELLER RIGGING CHART Engine RPM Range: 5500‑6000 Gearcase ratio: 2.33:1 Boat Weight Boat Speed RH - Part Number Description Performance Category

60 STD HP FourStroke ‑ Freshwater Fish (V and Mod V)

Diameter
No. of Blades
Pitch
4
1300-1700
14
Elite Series
10.6
Trophy Sport
48-878616A46
16-30
Trophy Sport
48-878614A46
Elite Series
4
1500-2000
17-26
13
10.6
10.6
1700-2500
4
12
Elite Series
Trophy Sport
19-22
48-878612A46
10.25
10.4
48-855860A46
14
Sport Series
Vengeance
1300-1700
16-30
Sport Series
Vengeance
48-855858A46
13
10.5
1500-2000
17-26
15-33
48-8M8026640
Elite Series
15
SpitFire
1200-1600
10.1 15 3 3 3 4 1200-1600 15-33 48-855862A46 Vengeance Sport Series
10.1 14 4 1300-1700 16-30 48-8M8026635 SpitFire Elite Series
10.3 13 4 1500-2000 17-26 48-8M8026630 SpitFire Elite Series
10 19 3 900-1000 11-47 48- 73146A45 Black Max Sport Series
10 17 3 1000-1300 13-40 48- 73144A45 Black Max Sport Series
10 16 3 1100-1400 14-37 48- 73142A45 Black Max Sport Series
10.1 15 3 1200-1600 15-33 48- 73140A45 Black Max Sport Series
10.25 14 3 1300-1700 16-30 48- 73138A45 Black Max Sport Series
10.4 13 3 1500-2000 17-26 48- 73136A45 Black Max Sport Series
TRI / PONTOON: 40 - 350 HP
Verado 350 HP ‑ Tri / Pontoon (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1
No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Single 13.45” 22 3 3900-4500 62-70 48-899202A46 Enertia Comp Series
Single 13.63” 21 3 4200-4700 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Single 13.80” 20 3 4400-5000 56-63 48-899000A46 Enertia Comp Series
Single 14.00” 19 3 4600-5300 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Single 14.22” 18 3 5000-5700 50-56 48-898996A46 Enertia Comp Series
Single 14.45” 17 3 5300-6300 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
Single 14.72” 16 3 5700-6700 43-50 48-898992A46 Enertia Comp Series
Single 15.00” 15 3 6300-7500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Single 15.30" 14 3 6700-8500 35-43 48-898988A46 Enertia 48-8M0079504 Comp Series
Single 15.60" 13 3 7500-9800 31-39 48-8M0070074 Enertia 48-8M0070076 Comp Series
Single 16.00” 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Single 16.00” 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Single 16.00” 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series
Single 16.00” 20 3 4400-5000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Single 16.00” 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Single 16.00” 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Single 16.00” 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Single 14.62” 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Single 14.62” 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Single 14.62” 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Single 14.62" 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Single 14.62” 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Single 14.62” 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Single 14.62” 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0064449 Comp Series
Twin 13.63” 21 3 7000-8300 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Twin 14.00” 19 3 8100-9600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Twin 14.45” 17 3 9600-12200 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
