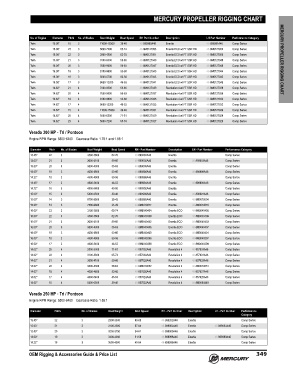

Page 362 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Twin 15.00” 15 3 11600-15300 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Twin 16.00” 23 3 5800-7200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Twin 16.00” 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Twin 16.00” 21 3 7000-8300 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series MERCURY PROPELLER RIGGING CHART
Twin 16.00” 20 3 7600-9000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Twin 16.00” 19 3 8100-9600 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Twin 16.00” 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Twin 16.00” 17 3 9600-12200 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Twin 14.62” 21 4 7000-8300 59-66 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Twin 14.62" 20 4 7600-9000 56-63 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Twin 14.62” 19 4 8100-9600 53-60 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Twin 14.62” 17 4 9600-12200 46-53 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Twin 14.62” 15 4 11600-15300 39-46 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Twin 14.62” 25 4 5000-6300 71-81 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Twin 14.62” 23 4 5800-7200 65-74 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0127026 Comp Series

Verado 300 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1 and 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance Category
13.45” 22 3 3300-3800 62-70 48-899202A46 Enertia Comp Series
13.63” 21 3 3600-4100 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
13.80” 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14.00” 19 3 4000-4600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 4300-4900 50-56 48-898996A46 Enertia Comp Series
14.45” 17 3 4600-5400 46-53 48-898994A46 Enertia 48-898994A46 Comp Series
14.72” 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15.00” 15 3 5400-6500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
15.00” 14 3 6700-8500 35-43 48-898988A46 Enertia 48-8M0079504 Comp Series
15.00” 13 3 7500-9800 31-39 48-8M0070077 Enertia 48-8M0070076 Comp Series
16.00" 23 3 3100-3600 65-74 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16.00" 22 3 3300-3800 62-70 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16.00" 21 3 3600-4100 59-66 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16.00" 20 3 3800-4300 56-63 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16.00" 19 3 4000-4600 53-60 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16.00" 18 3 4300-4900 50-56 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16.00" 17 3 4600-5400 46-53 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
14.62” 25 4 2800-3300 71-81 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.62” 23 4 3100-3600 65-74 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.62” 21 4 3600-4100 59-66 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.62" 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.62” 19 4 4000-4600 53-60 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.62” 17 4 4600-5400 46-53 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.62” 15 4 5400-6500 39-46 48-857022A46 Revolution 4 48-8M0064449 Comp Series

Verado 250 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.45” 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series
13.63” 21 3 3100-3500 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.80” 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14.00” 19 3 3400-4000 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
