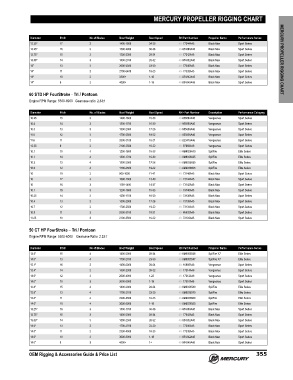

Page 368 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13.25" 17 3 1400-1800 34-38 48- 77344A45 Black Max Sport Series
13.25" 16 3 1500-2000 30-36 48-854360A45 Black Max Sport Series
13.75" 15 3 1700-2300 28-34 48- 77342A45 Black Max Sport Series
13.88" 14 3 1800-2700 26-32 48-854352A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
14" 13 3 2000-3300 23-30 48- 77340A45 Black Max Sport Series
14" 11 3 2700-5400 18-25 48- 77338A45 Black Max Sport Series
14" 10 3 3500+ 1-18 48-854342A45 Black Max Sport Series
14" 9 3 4000+ 1-15 48-854340A45 Black Max Sport Series

60 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase ratio: 2.33:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.25 15 3 1200-1600 15-33 48-855862A46 Vengeance Sport Series
10.4 14 3 1300-1700 16-30 48-855860A46 Vengeance Sport Series
10.5 13 3 1500-2000 17-26 48-855858A46 Vengeance Sport Series
11.0 12 3 1700-2500 19-22 48-855856A46 Vengeance Sport Series
11.6 11 3 2000-3100 18-21 48-823478A46 Vengeance Sport Series
12.25 9 3 2100-3500 16-22 48- 97868A46 Vengeance Sport Series
10.1 15 4 1200-1600 15-33 48-8M8026640 SpitFire Elite Series
10.1 14 4 1300-1700 16-30 48-8M8026635 SpitFire Elite Series
10.3 13 4 1500-2000 17-26 48-8M8026630 SpitFire Elite Series
10.6 12 4 1700-2500 19-22 48-8M8026625 SpitFire Elite Series
10 19 3 900-1000 11-47 48- 73146A45 Black Max Sport Series
10 17 3 1000-1300 13-40 48- 73144A45 Black Max Sport Series
10 16 3 1100-1400 14-37 48- 73142A45 Black Max Sport Series
10.1 15 3 1200-1600 15-33 48- 73140A45 Black Max Sport Series
10.25 14 3 1300-1700 16-30 48- 73138A45 Black Max Sport Series
10.4 13 3 1500-2000 17-26 48- 73136A45 Black Max Sport Series
10.7 12 3 1700-2500 19-22 48- 73134A45 Black Max Sport Series
10.9 11 3 2000-3100 18-21 48- 85632A45 Black Max Sport Series
11.25 10 3 2100-3500 16-22 48- 73132A45 Black Max Sport Series

50 CT HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13.5" 15 4 1400-2000 28-34 48-8M0055548 SpitFire X7 Elite Series
14.0" 13 4 1700-2700 23-30 48-8M0055547 SpitFire X7 Elite Series
13.1" 16 3 1400-2000 28-34 48- 16986A46 Vengeance Sport Series
13.4" 14 3 1500-2300 26-32 48- 17314A46 Vengeance Sport Series
14.0" 12 3 2000-4000 1-23 48- 17312A46 Vengeance Sport Series
14.0" 10 3 3000-5000 1-18 48- 17310A46 Vengeance Sport Series
12.8" 15 4 1400-2000 28-34 48-8M8026580 SpitFire Elite Series
13.8" 13 4 1700-2700 23-30 48-8M8026570 SpitFire Elite Series
13.8" 11 4 2300-4500 18-25 48-8M8026560 SpitFire Elite Series
14.0" 10 4 3000-5000 1-18 48-8M8026555 SpitFire Elite Series
13.25" 16 3 1300-1700 30-36 48-854360A45 Black Max Sport Series
13.75" 15 3 1400-2000 28-34 48- 77342A45 Black Max Sport Series
13.88" 14 3 1500-2300 26-32 48-854352A45 Black Max Sport Series
14.0" 13 3 1700-2700 23-30 48- 77340A45 Black Max Sport Series
14.0" 11 3 2300-4500 18-25 48- 77338A45 Black Max Sport Series
14.0" 10 3 3000-5000 1-18 48-854342A45 Black Max Sport Series
14.0" 9 3 4000+ 1+ 48-854340A45 Black Max Sport Series
