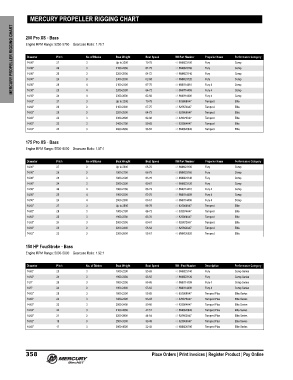

MERCURY PROPELLER RIGGING CHART
MERCURY PROPELLER RIGGING CHART Engine RPM Range: 5250‑5750 Gearcase Ratio: 1.75:1 Boat Weight Boat Speed RH Part Number Propeller Name Performance Category

200 Pro XS ‑ Bass

No of Blades
Diameter
Pitch
Up to 2200
48-8M8023180
70-78
Comp
27
3
14.00"
Fury
67-75
2100-2300
14.00"
3
26
48-8M8023160
Fury
Comp
Comp
3
25
Fury
14.00"
48-8M8023140
64-72
2200-2500
14.00"
48-8M0114410
14.50"
Fury 4
Comp
26
67-75
2100-2300
Comp
2200-2500
64-72
25
48-8M0114409
14.50"
Fury 4
Comp
62-68
14.50" 24 3 4 4 4 2300-2600 62-68 48-8M8023120 Fury Comp
2300-2600
Fury 4
48-8M0114408
24
14.62" 27 3 Up to 2200 70-78 48-825868A47 Tempest Elite
14.62" 26 3 2100-2300 67-75 48-825874A47 Tempest Elite
14.62" 25 3 2200-2500 64-72 48-825866A47 Tempest Elite
14.62" 24 3 2300-2600 62-68 48-825872A47 Tempest Elite
14.62" 23 3 2400-2700 59-65 48-825864A47 Tempest Elite
14.62" 22 3 2600-2900 56-62 48-8M8026820 Tempest Elite
175 Pro XS ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.87:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.00" 27 3 Up to 2000 68-76 48-8M8023180 Fury Comp
14.00" 26 3 1900-2100 66-73 48-8M8023160 Fury Comp
14.00" 25 3 1900-2200 63-70 48-8M8023140 Fury Comp
14.00" 24 3 2000-2300 60-67 48-8M8023120 Fury Comp
14.50" 26 4 1900-2100 66-73 48-8M0114410 Fury 4 Comp
14.50" 25 4 1900-2200 63-70 48-8M0114409 Fury 4 Comp
14.50" 24 4 2000-2300 60-67 48-8M0114408 Fury 4 Comp
14.62" 27 3 Up to 2000 68-76 48-825868A47 Tempest Elite
14.62" 26 3 1900-2100 66-73 48-825874A47 Tempest Elite
14.62" 25 3 1900-2200 63-70 48-825866A47 Tempest Elite
14.62" 24 3 2000-2300 60-67 48-825872A47 Tempest Elite
14.62" 23 3 2200-2400 58-64 48-825864A47 Tempest Elite
14.62" 22 3 2300-2600 55-61 48-8M8026820 Tempest Elite
150 HP FourStroke ‑ Bass
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 25 3 1800-2200 55-65 48-8M8023140 Fury Comp Series
14.62” 24 3 1900-2300 53-62 48-8M8023120 Fury Comp Series
14.5” 25 3 1800-2200 55-65 48-8M0114409 Fury 4 Comp Series
14.5” 24 3 1900-2300 53-62 48-8M0114408 Fury 4 Comp Series
14.62” 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.62” 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.62” 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series
