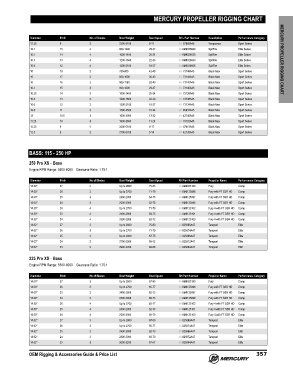

Page 370 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.25 9 3 2200-5100 8-17 48- 97868A46 Vengeance Sport Series
10.1 15 4 900-1200 29-37 48-8M8026640 SpitFire Elite Series
10.1 14 4 1000-1400 25-34 48-8M8026635 SpitFire Elite Series
10.3 13 4 1200-1600 22-30 48-8M8026630 SpitFire Elite Series MERCURY PROPELLER RIGGING CHART
10.6 12 4 1300-2100 18-27 48-8M8026625 SpitFire Elite Series
10 19 3 700-800 42-48 48- 73146A45 Black Max Sport Series
10 17 3 800-1000 35-43 48- 73144A45 Black Max Sport Series
10 16 3 800-1100 32-40 48- 73142A45 Black Max Sport Series
10.1 15 3 900-1200 29-37 48- 73140A45 Black Max Sport Series
10.25 14 3 1000-1400 25-34 48- 73138A45 Black Max Sport Series
10.4 13 3 1200-1600 22-30 48- 73136A45 Black Max Sport Series
10.6 12 3 1300-2100 18-27 48- 73134A45 Black Max Sport Series
10.8 11 3 1500-2500 15-24 48- 85632A45 Black Max Sport Series
12 10.5 3 1600-3000 13-22 48- 42740A45 Black Max Sport Series
11.25 10 3 1800-3600 11-20 48- 73132A45 Black Max Sport Series
12.25 9 3 2200-5100 8-17 48- 87818A45 Black Max Sport Series
12.5 8 3 2700-8700 5-14 48- 42738A45 Black Max Sport Series

BASS: 115 - 250 HP

250 Pro XS ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.00" 27 3 Up to 2600 75-83 48-8M8023180 Fury Comp
14.00" 26 3 Up to 2700 71-79 48-8M0125098 Fury with FT SSR HD Comp
14.00" 25 3 2400-2900 64-75 48-8M0125097 Fury with FT SSR HD Comp
14.00" 24 3 2500-3000 62-75 48-8M0125096 Fury with FT SSR HD Comp
14.50" 26 4 Up to 2700 71-79 48-8M0125102 Fury 4 with FT SSR HD Comp
14.50" 25 4 2400-2900 64-75 48-8M0125101 Fury 4 with FT SSR HD Comp
14.50" 24 4 2500-3000 62-72 48-8M0125100 Fury 4 with FT SSR HD Comp
14.62" 27 3 Up to 2600 75-83 48-825868A47 Tempest Elite
14.62" 26 3 Up to 2700 71-79 48-825874A47 Tempest Elite
14.62" 25 3 Up to 2800 67-75 48-825866A47 Tempest Elite
14.62" 24 3 2700-3000 65-72 48-825872A47 Tempest Elite
14.62" 23 3 2900-3200 62-68 48-825864A47 Tempest Elite

225 Pro XS ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.00" 27 3 Up to 2600 67-80 48-8M8023180 Fury Comp
14.00" 26 3 Up to 2700 65-77 48-8M0125098 Fury with FT SSR HD Comp
14.00" 25 3 2400-2900 62-73 48-8M0125097 Fury with FT SSR HD Comp
14.00" 24 3 2500-3000 60-73 48-8M0125096 Fury with FT SSR HD Comp
14.50" 26 4 Up to 2700 65-77 48-8M0125102 Fury 4 with FT SSR HD Comp
14.50" 25 4 2400-2900 62-73 48-8M0125101 Fury 4 with FT SSR HD Comp
14.50" 24 4 2500-3000 60-70 48-8M0125100 Fury 4 with FT SSR HD Comp
14.62" 27 3 Up to 2600 67-80 48-825868A47 Tempest Elite
14.62" 26 3 Up to 2700 65-77 48-825874A47 Tempest Elite
14.62" 25 3 2400-2900 62-73 48-825866A47 Tempest Elite
14.62" 24 3 2500-3000 60-70 48-825872A47 Tempest Elite
14.62" 23 3 2600-3200 57-67 48-825864A47 Tempest Elite

OEM Rigging & Accessories Guide & Price List 357
