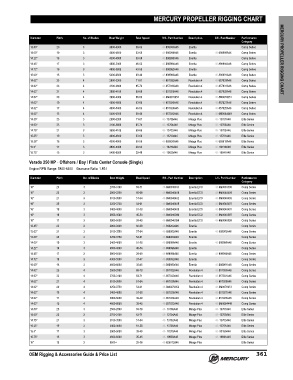

Page 374 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.80” 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14.00” 19 3 4000-4600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 4300-4900 50-56 48-898996A46 Enertia Comp Series MERCURY PROPELLER RIGGING CHART
14.45” 17 3 4600-5400 46-53 48-898994A46 Enertia 48-898994A46 Comp Series
14.72” 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15.00” 15 3 5400-6500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
14.62” 25 4 2800-3300 71-81 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.62” 23 4 3100-3600 65-74 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.62” 21 4 3600-4100 59-66 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.62" 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.62” 19 4 4000-4600 53-60 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.62” 17 4 4600-5400 46-53 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.62” 15 4 5400-6500 39-46 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.50” 25 3 2800-3300 71-81 48- 13706A46 Mirage Plus 48- 13707A46 Elite Series
14.63” 23 3 3100-3600 65-74 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75” 21 3 3600-4100 59-66 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25” 19 3 4000-4600 53-60 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.38” 18 3 4300-4900 50-56 48-889620A46 Mirage Plus 48-889619A46 Elite Series
15.5” 17 3 4600-5400 46-53 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75” 15 3 5400-6500 39-46 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series

Verado 250 HP ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16” 23 3 2700-3100 63-71 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16" 22 3 2900-3300 60-68 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16” 21 3 3100-3500 57-64 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16" 20 3 3250-3750 54-61 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16” 19 3 3400-4000 51-58 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16" 18 3 3650-4500 45-54 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16” 17 3 3900-5000 39-49 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.45” 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series
13.63” 21 3 3100-3500 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.80” 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14.00” 19 3 3400-4000 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
14.45” 17 3 3900-5000 39-49 48-898994A46 Enertia 48-898994A46 Comp Series
14.72” 16 3 4300-5500 37-47 48-898992A46 Enertia Comp Series
15.00” 15 3 4600-6000 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
14.62” 25 4 2500-2800 69-78 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.62” 23 4 2700-3100 63-71 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.62” 21 4 3100-3500 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.62" 20 4 3250-3750 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.62” 19 4 3400-4000 51-58 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.62” 17 4 3900-5000 39-49 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.62” 15 4 4600-6000 35-45 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.50” 25 3 2500-2800 69-78 48- 13706A46 Mirage Plus 48- 13707A46 Elite Series
14.63” 23 3 2700-3100 63-71 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75” 21 3 3100-3500 57-64 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25” 19 3 3400-4000 51-58 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.5” 17 3 3900-5000 39-49 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75” 15 3 4600-6000 35-45 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16” 13 3 5500+ 25-38 48-826072A46 Mirage Plus Elite Series

OEM Rigging & Accessories Guide & Price List 361
