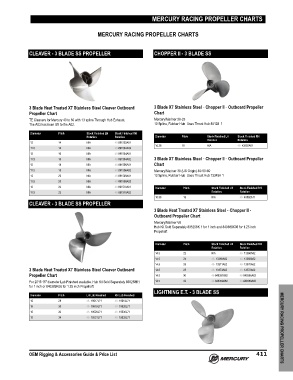

Page 424 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY RACING PROPELLER CHARTS

MERCURY RACING PROPELLER CHARTS

CLEAVER - 3 BLADE SS PROPELLER CHOPPER II - 3 BLADE SS

3 Blade Heat Treated X7 Stainless Steel Cleaver Outboard 3 Blade X7 Stainless Steel ‑ Chopper II ‑ Outboard Propeller
Propeller Chart Chart
TE Cleavers for Mercury 40 to 60 with 13 spline Through Hub Exhaust. Mercury/Mariner 20‑25
The A03 has been SS to the A02. 10 Spline, Rubber Hub Uses Thrust Hub 85128 1
Diameter Pitch Stock Finished LH Stock Finished RH
Rotation Rotation Diameter Pitch Stock Finished LH Stock Finished RH
Rotation Rotation
12 14 N/A 48-891502A01
10.38 18 N/A 48- 43592A61
11.5 14 N/A 48-891502A02
12 16 N/A 48-891504A01
11.5 16 N/A 48-891504A02 3 Blade X7 Stainless Steel ‑ Chopper II ‑ Outboard Propeller
12 18 N/A 48-891506A01 Chart
11.5 18 N/A 48-891506A02 Mercury/Mariner 30 (US Origin) 40‑50‑60
12 20 N/A 48-891508A01 13 Spline, Rubber Hub Uses Thrust Hub 73345A 1
11.5 20 N/A 48-891508A02
12 22 N/A 48-891510A01 Diameter Pitch Stock Finished LH Stock Finished RH
11.5 22 N/A 48-891510A02 Rotation Rotation
10.38 18 N/A 48- 43592A71
CLEAVER - 3 BLADE SS PROPELLER
3 Blade Heat Treated X7 Stainless Steel ‑ Chopper II ‑
Outboard Propeller Chart
Mercury/Mariner V6
Hub Kit Sold Separately 835258K 1 for 1 inch and 840389K06 for 1.25 inch
Propshaft

Diameter Pitch Stock Finished LH Stock Finished RH
Rotation Rotation
14.5 22 N/A 48- 13366A62
14.5 24 48- 13369A62 48- 13368A62
14.5 26 48- 13371A62 48- 13370A62
3 Blade Heat Treated X7 Stainless Steel Cleaver Outboard 14.5 28 48- 13373A62 48- 13372A62
Propeller Chart 14.5 30 48-849357A62 48-849356A62
For 2016 15" diameter Lab Finished available. Hub Kit Sold Separately 835258K1 14.5 32 48-849359A62 48-849358A62
for 1 inch or 840389K06 for 1.25 inch Propshaft
LIGHTNING E.T. - 3 BLADE SS
Diameter Pitch LH Lab Finished RH Lab Finished
15 28 48- 19517L71 48- 19518L71
15 30 48- 19519L71 48- 19520L71
15 32 48- 19529L71 48- 19530L71
15 34 48- 19531L71 48- 19532L71 MERCURY RACING PROPELLER CHARTS
