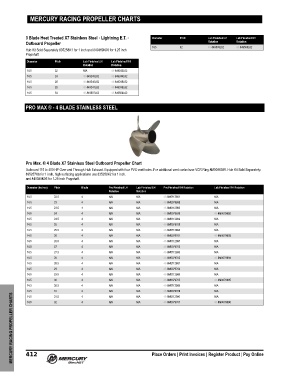

MERCURY RACING PROPELLER CHARTS

3 Blade Heat Treated X7 Stainless Steel ‑ Lightning E.T. ‑ Diameter Pitch Lab Finished LH Lab Finished RH
Outboard Propeller Rotation Rotation
14.5 32 48-849509L62 48-849508L62
Hub Kit Sold Separately 835258K1 for 1 inch and 840389K06 for 1.25 inch
Propshaft
Diameter Pitch Lab Finished LH Lab Finished RH
Rotation Rotation
14.5 22 N/A 48-849242L62
14.5 24 48-849243L62 48-849244L62
14.5 26 48-849245L62 48-849246L62
14.5 28 48-849247L62 48-849248L62
14.5 30 48-849507L62 48-849506L62

PRO MAX ® - 4 BLADE STAINLESS STEEL

Pro Max. ® 4 Blade X7 Stainless Steel Outboard Propeller Chart
Outboard 115 to 400 HP Over and Through Hub Exhaust. Equipped with four PVS vent holes. For additional vent control use VCR Ring 8M0086395. Hub Kit Sold Separately:
835257K6 for 1 inch, high surfacing applications use 835258K2 for 1 inch.
and 840389K06 for 1.25 inch Propshaft.
Diameter (Inches) Pitch Blade Pro Finished LH Lab Finished LH Pro Finished RH Rotation Lab Finished RH Rotation
Rotation Rotation
14.5 22.5 4 N/A N/A 48-8M0112981 N/A
14.5 23 4 N/A N/A 48-8M0079698 N/A
14.5 23.5 4 N/A N/A 48-8M0112982 N/A
14.5 24 4 N/A N/A 48-8M0079699 48-8M0079692
14.5 24.5 4 N/A N/A 48-8M0112983 N/A
14.5 25 4 N/A N/A 48-8M0079700 N/A
14.5 25.5 4 N/A N/A 48-8M0112984 N/A
14.5 26 4 N/A N/A 48-8M0079701 48-8M0079693
14.5 26.5 4 N/A N/A 48-8M0112985 N/A
14.5 27 4 N/A N/A 48-8M0079702 N/A
14.5 27.5 4 N/A N/A 48-8M0112986 N/A
14.5 28 4 N/A N/A 48-8M0079703 48-8M0079694
14.5 28.5 4 N/A N/A 48-8M0112987 N/A
14.5 29 4 N/A N/A 48-8M0079704 N/A
14.5 29.5 4 N/A N/A 48-8M0112988 N/A
14.5 30 4 N/A N/A 48-8M0079705 48-8M0079695
14.5 30.5 4 N/A N/A 48-8M0112989 N/A
14.5 31 4 4 4 N/A N/A 48-8M0079706 N/A
MERCURY RACING PROPELLER CHARTS 412 Place Orders | Print Invoices | Register Product | Pay Online
N/A
48-8M0112990
N/A
31.5
14.5
N/A
48-8M0079696
48-8M0079707
32
14.5
N/A
N/A
