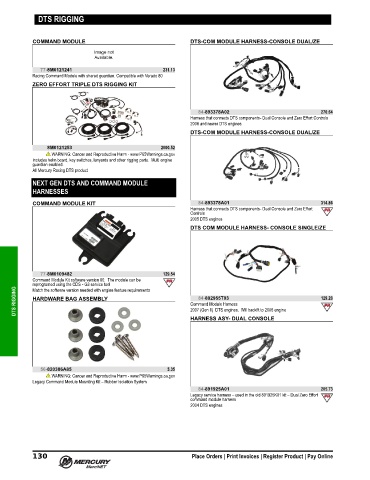

Page 143 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

COMMAND MODULE DTS-COM MODULE HARNESS-CONSOLE DUAL/ZE

77-8M0121241 231.13
Racing Command Module with shared guardian. Compatible with Verado 80
ZERO EFFORT TRIPLE DTS RIGGING KIT

84-893378A02 270.64
Harness that connects DTS components‑ Dual Console and Zero Effort Controls
2006 and newer DTS engines
DTS-COM MODULE HARNESS-CONSOLE DUAL/ZE

8M0121253 2000.52
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes helm board, key switches, lanyards and other rigging parts. Multi engine
guardian enabled.
All Mercury Racing DTS product

NEXT GEN DTS AND COMMAND MODULE
HARNESSES
COMMAND MODULE KIT 84-893378A01 314.86
Harness that connects DTS components‑ Dual Console and Zero Effort
Controls
2005 DTS engines
DTS COM MODULE HARNESS- CONSOLE SINGLE/ZE

77-8M0109482 129.54
Command Module Kit software version 80. The module can be
reprogramed using the CDS ‑ G3 service tool
DTS RIGGING HARDWARE BAG ASSEMBLY Command Module Harness 129.28
Match the software version needed with engine feature requirements
84-892955T03
2007 (Gen II) DTS engines. Will backfit to 2006 engine
HARNESS ASY- DUAL CONSOLE

56-820386A85 5.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Legacy Command Module Mounting Kit – Rubber Isolation System
84-891925A01 205.73
Legacy service harness – used in the old 891925K01 kit – Dual Zero Effort
command module harness
2004 DTS engines
