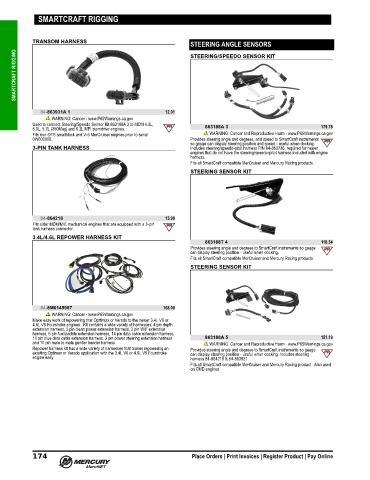

Page 187 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

TRANSOM HARNESS STEERING ANGLE SENSORS
SMARTCRAFT RIGGING
STEERING/SPEEDO SENSOR KIT

84-863931A 1 12.01
WARNING: Cancer - www.P65Warnings.ca.gov
Used to connect Steering/Speedo Sensor Kit 863188A 3 to MCM 4.3L, 179.78
5.0L, 5.7L (350Mag) and 6.2L MPI sterndrive engines. 863188A 3
Fits non‑DTS smallblock and V‑6 MerCruiser engines prior to serial WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
0W600000. Provides steering angle and degrees, and speed to SmartCraft instruments
so gauge can display steering position and speed ‑ useful when docking.
3-PIN TANK HARNESS Includes steering/speedo‑pitot harness P/N 84‑863736, required for newer
engines that do not have the steering/speedo‑pitot harness included with engine
harness.
Fits all SmartCraft compatible MerCruiser and Mercury Racing products.
STEERING SENSOR KIT

84-864218 15.90
Fits older MCM/MIE mechanical engines that are equipped with a 3‑pin
tank harness connector.
3.4L/4.6L REPOWER HARNESS KIT
863188T 4 118.34
Provides steering angle and degrees to SmartCraft instruments so gauge
can display steering position ‑ useful when docking.
Fits all SmartCraft compatible MerCruiser and Mercury Racing products.
STEERING SENSOR KIT

84-8M0145987 168.00
WARNING: Cancer - www.P65Warnings.ca.gov
Make easy work of repowering that Oprtimax or Verado to the newer 3.4L V6 or
4.6L V8 Fourstroke engines. Kit contains a wide variety of harnesses: 4 pin depth
extension harness, 2 pin clean power extension harness, 2 pin WIF extension
harness, 6 pin fuel/paddle extension harness, 14 pin data cable extension harness,
10 pin blue data cable extension harness, 3 pin power steering extension harness 863188A 5 151.19
and 10 pin male to male gender bender harness WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Repower harness kit has a wide variety of harnesses that makes repowering an Provides steering angle and degrees to SmartCraft instruments so gauge
exisiting Optimax or Verado application with the 3.4L V6 or 4.6L V8 Fourstroke can display steering position ‑ useful when docking. Includes steering
engine easy harness 84‑864219 & 84‑863931
Fits all SmartCraft compatible MerCruiser and Mercury Racing product . Also used
on CMD engines
