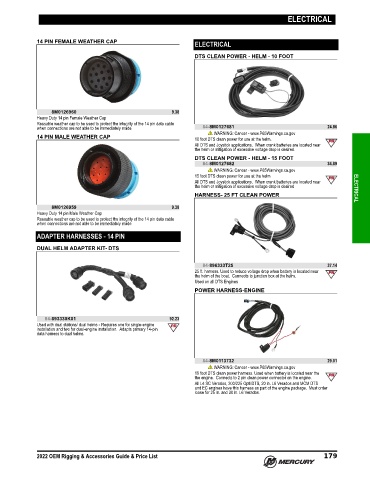

Page 192 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

14 PIN FEMALE WEATHER CAP ELECTRICAL

DTS CLEAN POWER - HELM - 10 FOOT

8M0126960 9.38
Heavy Duty 14 pin Female Weather Cap
Reusable weather cap to be used to protect the integrity of the 14 pin data cable
when connections are not able to be immediately made 84-8M0127681 24.86
WARNING: Cancer - www.P65Warnings.ca.gov
14 PIN MALE WEATHER CAP 10 foot DTS clean power for use at the helm.
All DTS and Joystick applications. When crank batteries are located near
the helm or mitigation of excessive voltage drop is desired.
DTS CLEAN POWER - HELM - 15 FOOT
84-8M0127682 34.89
WARNING: Cancer - www.P65Warnings.ca.gov
15 foot DTS clean power for use at the helm
All DTS and Joystick applications. When crank batteries are located near
the helm or mitigation of excessive voltage drop is desired ELECTRICAL
HARNESS- 25 FT CLEAN POWER
8M0126959 9.38
Heavy Duty 14 pin Male Weather Cap
Reusable weather cap to be used to protect the integrity of the 14 pin data cable
when connections are not able to be immediately made
ADAPTER HARNESSES - 14 PIN

DUAL HELM ADAPTER KIT- DTS

84-896333T25 37.14
25 ft. harness. Used to reduce voltage drop when battery is located near
the helm of the boat. Connects to junction box at the helm.
Used on all DTS Engines
POWER HARNESS-ENGINE

84-893330K01 92.23
Used with dual stations/ dual helms ‑ Requires one for single‑engine
installation and two for dual‑engine installation. Adapts primary 14‑pin
data harness to dual helms.

84-8M0113732 29.01
WARNING: Cancer - www.P65Warnings.ca.gov
15 foot DTS clean power harness. Used when battery is located near the
the engine. Connects to 2 pin clean power connector on the engine.
All L4 SC Verados, 200/225 Opti DTS, 20 in. L6 Verados and MCM DTS
and EC engines have this harness as part of the engine package. Must order
loose for 25 in. and 30 in. L6 Verados.

2022 OEM Rigging & Accessories Guide & Price List 179
