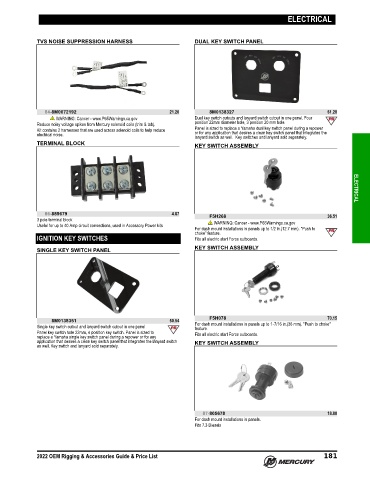

Page 194 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

TVS NOISE SUPPRESSION HARNESS DUAL KEY SWITCH PANEL

84-8M0072192 21.20 8M0138327 61.20
WARNING: Cancer - www.P65Warnings.ca.gov Dual key switch cutouts and lanyard switch cutout in one panel. Four
Reduce noisy voltage spikes from Mercury solenoid coils (trim & tab). position 22mm diameter hole, 3 position 20 mm hole.
Kit contains 2 harnesses that are used across solenoid coils to help reduce Panel is sized to replace a Yamaha dual key switch panel during a repower
or for any application that desires a clean key switch panel that integrates the
electrical noise.
lanyard switch as well. Key switches and lanyard sold separately.
TERMINAL BLOCK KEY SWITCH ASSEMBLY

86-889679 4.87 F5H268 36.51 ELECTRICAL
3 pole terminal block WARNING: Cancer - www.P65Warnings.ca.gov
Useful for up to 40 Amp circuit connections, used in Accessory Power kits
For dash mount installations in panels up to 1/2 in.(12.7 mm). "Push to
choke" feature.
IGNITION KEY SWITCHES Fits all electric start Force outboards.
SINGLE KEY SWITCH PANEL KEY SWITCH ASSEMBLY

F5H078 70.15
8M0138351 50.54
Single key switch cutout and lanyard switch cutout in one panel For dash mount installations in panels up to 1‑7/16 in.(36 mm). "Push to choke"
feature.
Panel key switch hole 22mm, 4 position key switch. Panel is sized to Fits all electric start Force outboards.
replace a Yamaha single key switch panel during a repower or for any
application that desires a clean key switch panel that integrates the lanyard switch KEY SWITCH ASSEMBLY
as well. Key switch and lanyard sold separately.

87-805678 18.80
For dash mount installations in panels.
Fits 7.3 Diesels

2022 OEM Rigging & Accessories Guide & Price List 181
