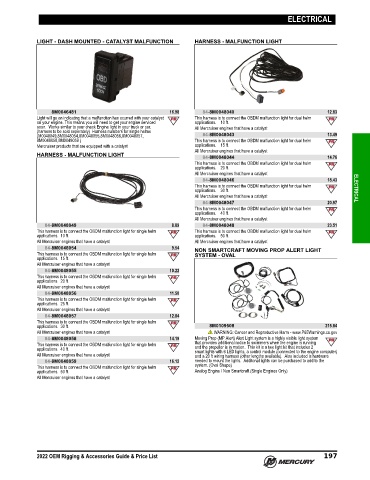

Page 210 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

LIGHT - DASH MOUNTED - CATALYST MALFUNCTION HARNESS - MALFUNCTION LIGHT

8M0046481 16.98 84-8M0048040 12.83
Light will go on indicating that a malfunction has ocurred with your catalyst This harness is to connect the OBDM malfunction light for dual helm
on your engine. This means you will need to get your engine serviced applications. 10 ft.
soon. Works similar to your check Engine light in your truck or car. All Mercruiser engines that have a catalyst
(harness to be sold seperately) Harness numbers for single helms
(M0048049,8M0048054,8M0048055,8M0048056,8M0048057, 84-8M0048043 13.49
8M0048058,8M0048059 ) This harness is to connect the OBDM malfunction light for dual helm
Mercruiser products that are equipped with a catalyst applications. 15 ft.
All Mercruiser engines that have a catalyst
HARNESS - MALFUNCTION LIGHT
84-8M0048044 14.76
This harness is to connect the OBDM malfunction light for dual helm
applications. 20 ft.
All Mercruiser engines that have a catalyst
84-8M0048046 18.43
This harness is to connect the OBDM malfunction light for dual helm ELECTRICAL
applications. 30 ft.
All Mercruiser engines that have a catalyst
84-8M0048047 20.97
This harness is to connect the OBDM malfunction light for dual helm
applications. 40 ft.
All Mercruiser engines that have a catalyst
84-8M0048049 8.89 84-8M0048048 23.51
This harness is to connect the OBDM malfunction light for single helm This harness is to connect the OBDM malfunction light for dual helm
applications. 10 ft. applications. 50 ft.
All Mercruiser engines that have a catalyst All Mercruiser engines that have a catalyst
84-8M0048054 9.54 NON SMARTCRAFT MOVING PROP ALERT LIGHT
This harness is to connect the OBDM malfunction light for single helm SYSTEM - OVAL
applications. 15 ft.
All Mercruiser engines that have a catalyst
84-8M0048055 10.22
This harness is to connect the OBDM malfunction light for single helm
applications. 20 ft.
All Mercruiser engines that have a catalyst
84-8M0048056 11.50
This harness is to connect the OBDM malfunction light for single helm
applications. 25 ft.
All Mercruiser engines that have a catalyst
84-8M0048057 12.84
This harness is to connect the OBDM malfunction light for single helm
applications. 30 ft. 8M0109508 215.84
All Mercruiser engines that have a catalyst WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
84-8M0048058 14.19 Moving Prop (MP Alert) Alert Light system is a highly visible light system
This harness is to connect the OBDM malfunction light for single helm that provides additional notice to swimmers when the engine is running
applications. 40 ft. and the propeller is in motion. This kit is a two light kit that includes 2
smart lights with 6 LED lights, a control module (connected to the engine computer)
All Mercruiser engines that have a catalyst and a 20 ft wiring harness (other lengths available). Also included is hardware
84-8M0048059 16.12 needed to mount the lights. Additonal lights can be purchased to add to the
This harness is to connect the OBDM malfunction light for single helm system. (Oval Shape)
applications. 50 ft. Analog Engine / Non Smartcraft (Single Engines Only)
All Mercruiser engines that have a catalyst

2022 OEM Rigging & Accessories Guide & Price List 197
