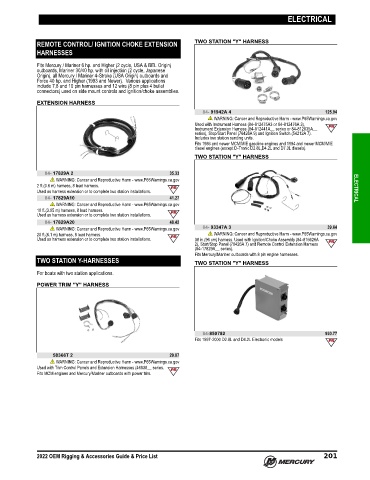

Page 214 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

REMOTE CONTROL/ IGNITION CHOKE EXTENSION TWO STATION "Y" HARNESS
HARNESSES

Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin)
outboards, Mariner 30/40 hp. with oil injection (2 cycle, Japanese
Origin), all Mercury / Mariner 4‑Stroke (USA Origin) outboards and
Force 40 hp. and Higher (1993 and Newer). Various applications
include 7,8 and 10 pin harnesses and 12 wire (8 pin plus 4 bullet
connectors) used on side mount controls and ignition/choke assemblies.

EXTENSION HARNESS
84- 91942A 4 125.94
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Used with Instrument Harness (84‑812475A3 or 84‑812476A 3),
Instrument Extension Harness (84‑812441A__ series or 84‑812835A__
series), Stop/Start Panel (76426A 9) and Ignition Switch (54212A 7).
Includes two station sending units.
Fits 1986 and newer MCM/MIE gasoline engines and 1994 and newer MCM/MIE
diesel engines (except D‑Tronic D2.8L,D4.2L and D7.3L diesels).
TWO STATION "Y" HARNESS

84- 17829A 2 35.33
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
2 ft.(0.6 m) harness, 8 lead harness. ELECTRICAL
Used as harness extension or to complete two station installations.
84- 17829A10 41.27
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
10 ft.(3.05 m) harness, 8 lead harness.
Used as harness extension or to complete two station installations.
84- 17829A20 48.42
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 84- 93347A 3 39.64
20 ft.(6.1 m) harness, 8 lead harness. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Used as harness extension or to complete two station installations. 38 in.(96 cm) harness. Used with Ignition/Choke Assembly (84‑816626A
2), Start/Stop Panel (76426A 7) and Remote Control Extension Harness
(84‑17829A__ series).
Fits Mercury/Mariner outboards with 8 pin engine harnesses.
TWO STATION Y-HARNESSES TWO STATION "Y" HARNESS

For boats with two station applications.
POWER TRIM "Y" HARNESS

84-850782 930.77
Fits 1997‑2000 D2.8L and D4.2L Electronic models

58366T 2 29.87
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Used with Trim Control Panels and Extension Harnesses (46838__ series.
Fits MCM engines and Mercury/Mariner outboards with power trim.

2022 OEM Rigging & Accessories Guide & Price List 201
