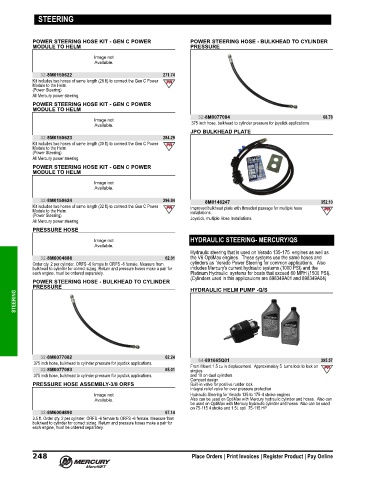

Page 261 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

POWER STEERING HOSE KIT - GEN C POWER POWER STEERING HOSE - BULKHEAD TO CYLINDER
MODULE TO HELM PRESSURE

32-8M0150622 271.74
Kit includes two hoses of same length (28 ft) to connect the Gen C Power
Module to the Helm.
(Power Steering)
All Mercury power steering.
POWER STEERING HOSE KIT - GEN C POWER
MODULE TO HELM
32-8M0077084 68.78
.375 inch hose, bulkhead to cylinder pressure for joystick applications.
JPO BULKHEAD PLATE
32-8M0150623 284.29
Kit includes two hoses of same length (30 ft) to connect the Gen C Power
Module to the Helm.
(Power Steering)
All Mercury power steering.
POWER STEERING HOSE KIT - GEN C POWER
MODULE TO HELM

32-8M0150624 296.84 8M0146247 352.10
Kit includes two hoses of same length (32 ft) to connect the Gen C Power Improved bulkhead plate with threaded passage for multiple hose
Module to the Helm. installations.
(Power Steering)
All Mercury power steering. Joystick, multiple Hose Installations.
PRESSURE HOSE
HYDRAULIC STEERING- MERCURY/QS
Hydraulic steering that is used on Verado 135‑175 engines as well as
32-8M6004888 62.01 the V6 OptiMax engines. These systems use the same hoses and
Order qty. 2 per cylinder. ORFS ‑6 female to ORFS ‑6 female. Measure from cylinders as Verado Power Steering for common applications. Also
bulkhead to cylinder for correct sizing. Return and pressure hoses make a pair for includes Mercury's current hydraulic systems (1000 PSI) and the
each engine, must be ordered separately. Platinum Hydraulic systems for boats that exceed 60 MPH (1500 PSI).
(Cylinders used in this applicauions are 898349A01 and 898349A04)
POWER STEERING HOSE - BULKHEAD TO CYLINDER
PRESSURE HYDRAULIC HELM PUMP -Q/S
STEERING

32-8M0077082 62.24
64-891665Q01
.375 inch hose, bulkhead to cylinder pressure for joystick applications. Front Mount 1.5 cu in displacement. Approximately 5 turns lock to lock on 395.57
32-8M0077083 65.01 singles
.375 inch hose, bulkhead to cylinder pressure for joystick applications. and 10 on dual cylinders
Compact design
PRESSURE HOSE ASSEMBLY-3/8 ORFS Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
32-8M6004890 67.14
3.5 ft. Order qty. 2 per cylinder. ORFS ‑6 female to ORFS ‑6 female. Measure from
bulkhead to cylinder for correct sizing. Return and pressure hoses make a pair for
each engine, must be ordered separately.
