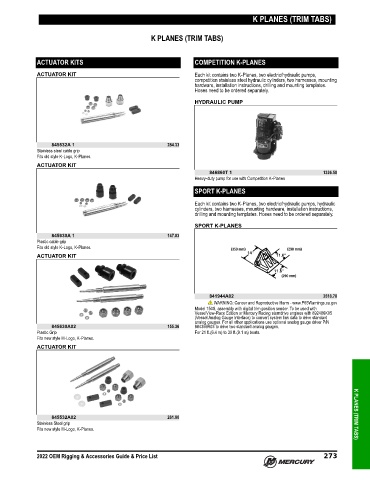

Page 286 - Rigging and Accessories Guide (2022) - 8M0187689

K PLANES (TRIM TABS)

K PLANES (TRIM TABS)

ACTUATOR KITS COMPETITION K-PLANES

ACTUATOR KIT Each kit contains two K‑Planes, two electric/hydraulic pumps,
competition stainless steel hydraulic cylinders, two harnesses, mounting
hardware, installation instructions, drilling and mounting templates.
Hoses need to be ordered separately.
HYDRAULIC PUMP

845532A 1 284.33
Stainless steel cable grip
Fits old style K‑Logo, K‑Planes.
ACTUATOR KIT
846860T 1 1336.58
Heavy‑duty pump for use with Competition K‑Planes

SPORT K-PLANES
Each kit contains two K‑Planes, two electric/hydraulic pumps, hydraulic
cylinders, two harnesses, mounting hardware, installation instructions,
drilling and mounting templates. Hoses need to be ordered separately.
SPORT K-PLANES
845630A 1 147.03
Plastic cable grip
Fits old style K‑Logo, K‑Planes.
ACTUATOR KIT

841944A02 3518.70
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Model 150S, assembly with digital trim position sender. To be used with
VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
analog gauges. For all other applications use optional analog gauge driver P/N
845630A02 155.36 884359A03 to drive two standard analog gauges.
Plastic Grip For 21 ft.(6.4 m) to 30 ft.(9.1 m) boats.
Fits new style M‑Logo, K‑Planes.
ACTUATOR KIT

845532A02 261.00 K PLANES (TRIM TABS)
Stainless Steel grip
Fits new style M‑Logo, K‑Planes.
