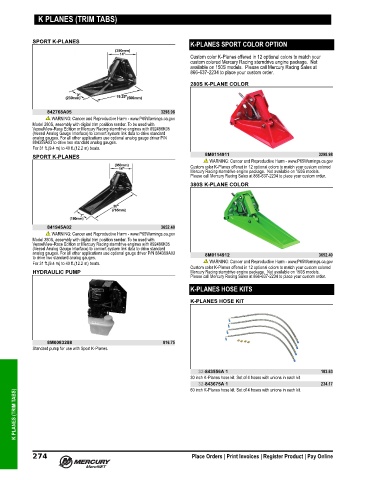

Page 287 - Rigging and Accessories Guide (2022) - 8M0187689

K PLANES (TRIM TABS)

SPORT K-PLANES K-PLANES SPORT COLOR OPTION

Custom color K‑Planes offered in 12 optional colors to match your
custom colored Mercury Racing sterndrive engine package. Not
available on 150S models. Please call Mercury Racing Sales at
866‑637‑2234 to place your custom order.

280S K-PLANE COLOR

842768A05 3298.98
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Model 280S, assembly with digital trim position sender. To be used with
VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
analog gauges. For all other applications use optional analog gauge driver P/N
884359A03 to drive two standard analog gauges.
For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats.
8M0114911 3298.98
SPORT K-PLANES
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Custom color K‑Planes offered in 12 optional colors to match your custom colored
Mercury Racing sterndrive engine package. Not available on 150S models.
Please call Mercury Racing Sales at 866‑637‑2234 to place your custom order.
380S K-PLANE COLOR

841945A02 3652.40
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Model 380S, assembly with digital trim position sender. To be used with
VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
analog gauges. For all other applications use optional gauge driver P/N 884359A03 8M0114912 3652.40
to drive two standard analog gauges.
For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Custom color K‑Planes offered in 12 optional colors to match your custom colored
HYDRAULIC PUMP Mercury Racing sterndrive engine package. Not available on 150S models.
Please call Mercury Racing Sales at 866‑637‑2234 to place your custom order.
K-PLANES HOSE KITS

K-PLANES HOSE KIT

8M0083288 816.75
Standard pump for use with Sport K‑Planes.

32-843556A 1 183.63
30 inch K‑Planes hose kit. Set of 4 hoses with unions in each kit.
32-843675A 1 234.17
60 inch K‑Planes hose kit. Set of 4 hoses with unions in each kit.
K PLANES (TRIM TABS)
