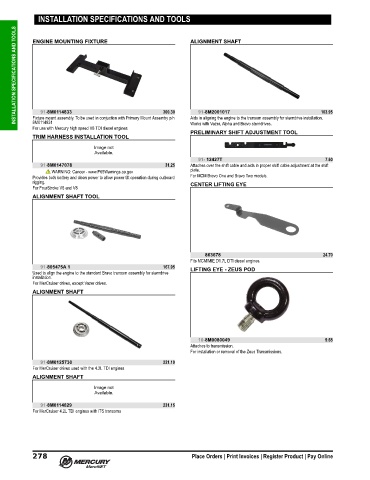

Page 291 - Rigging and Accessories Guide (2022) - 8M0187689

INSTALLATION SPECIFICATIONS AND TOOLS ALIGNMENT SHAFT
INSTALLATION SPECIFICATIONS AND TOOLS

ENGINE MOUNTING FIXTURE

91-8M0114833
91-8M2001017
Fixture mount assembly. To be used in conjuction with Primary Mount Assemby p/n
8M0114831
Works with Vazer, Alpha and Bravo sterndrives.
For use with Mercury high speed V8 TDI diesel engines 300.30 Aids in aligning the engine to the transom assembly for sterndrive installation. 103.95
PRELIMINARY SHIFT ADJUSTMENT TOOL
TRIM HARNESS INSTALLATION TOOL

91- 12427T 7.60
91-8M0147078 31.25 Attaches over the shift cable and aids in proper shift cable adjustment at the shift
WARNING: Cancer - www.P65Warnings.ca.gov plate.
Provides both battery and clean power to allow power tilt operation during outboard For MCM Bravo One and Bravo Two models.
rigging. CENTER LIFTING EYE
For FourStroke V6 and V8
ALIGNMENT SHAFT TOOL

863678 24.70
Fits MCM/MIE D1.7L DTI diesel engines.
91-805475A 1 167.95 LIFTING EYE - ZEUS POD
Used to align the engine to the standard Bravo transom assembly for sterndrive
installation.
For MerCruiser drives, except Vazer drives.
ALIGNMENT SHAFT

10-8M0080049 9.65
Attaches to transmission.
For installation or removal of the Zeus Transmissions.
91-8M0125730 221.10
For MerCruiser drives used with the 4.2L TDI engines
ALIGNMENT SHAFT

91-8M0114829 231.15
For MerCruiser 4.2L TDI engines with ITS transoms

278 Place Orders | Print Invoices | Register Product | Pay Online
