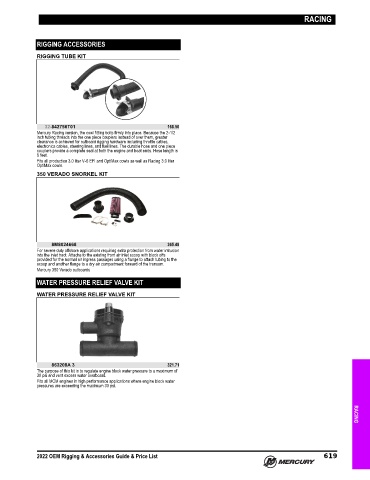

Page 632 - Rigging and Accessories Guide (2022) - 8M0187689

RACING

RIGGING ACCESSORIES

RIGGING TUBE KIT

32-842756T01 168.50
Mercury Racing version, the cowl fitting bolts firmly into place. Because the 2‑1/2
inch tubing threads into the one piece couplers instead of over them, greater
clearance is achieved for outboard rigging hardware including throttle cables,
electronics cables, steering lines, and fuel lines. The durable hose and one piece
couplers provide a complete seal at both the engine and boat ends. Hose length is
5 feet.
Fits all production 3.0 liter V‑6 EFI and OptiMax cowls as well as Racing 3.0 liter
OptiMax cowls.
350 VERADO SNORKEL KIT

8M8024668 365.48
For severe duty offshore applications requiring extra protection from water intrusion
into the inlet tract. Attachs to the existing front air inlet scoop with block offs
provided for the normal air ingress passages using a flange to attach tubing to the
scoop and another flange to a dry air compartment forward of the transom.
Mercury 350 Verado outboards
WATER PRESSURE RELIEF VALVE KIT

WATER PRESSURE RELIEF VALVE KIT

863208A 3 321.71
The purpose of this kit is to regulate engine block water pressure to a maximum of
30 psi and vent excess water overboard.
Fits all MCM engines in high performance applications where engine block water
pressures are exceeding the maximum 30 psi. RACING

2022 OEM Rigging & Accessories Guide & Price List 619
