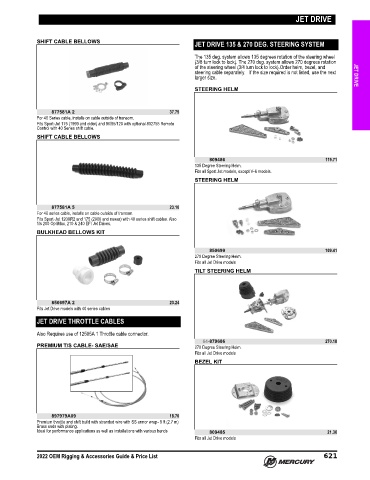

Page 634 - Rigging and Accessories Guide (2022) - 8M0187689

JET DRIVE

SHIFT CABLE BELLOWS JET DRIVE 135 & 270 DEG. STEERING SYSTEM

The 135 deg. system allows 135 degrees rotation of the steering wheel
(3/8 turn lock to lock). The 270 deg. system allows 270 degrees rotation
of the steering wheel (3/4 turn lock to lock).Order helm, bezel, and
steering cable separately. If the size required is not listed, use the next
larger size. JET DRIVE

STEERING HELM

877581A 2 37.75
For 40 Series cable, installs on cable outside of transom.
Fits Sport‑Jet 175 (1999 and older) and 90/95/120 with optional 802755 Remote
Control with 40 Series shift cable.
SHIFT CABLE BELLOWS

809486 119.71
135 Degree Steering Helm.
Fits all Sport Jet models, except V‑6 models.
STEERING HELM

877581A 5 23.10
For 40 series cable, installs on cable outside of transom.
Fits Sport‑Jet 120XR2 and 175 (2000 and newer) with 40 series shift cables. Also
fits 200 OptiMax, 210 & 240 EFI Jet Drives.
BULKHEAD BELLOWS KIT

850699 109.41
270 Degree Steering Helm.
Fits all Jet Drive models
TILT STEERING HELM

850697A 2 23.24
Fits Jet Drive models with 40 series cables
JET DRIVE THROTTLE CABLES

Also Requires use of 12505A 1 Throttle cable connector.
64-879686 270.18
PREMIUM T/S CABLE- SAE/SAE 270 Degree Steering Helm.
Fits all Jet Drive models
BEZEL KIT

897979A09 18.70
Premium throttle and shift build with stranded wire with SS armor wrap‑ 9 ft (2.7 m)
Brass ends with plating.
Ideal for performance applications as well as installations with various bends 809485 21.36
Fits all Jet Drive models

2022 OEM Rigging & Accessories Guide & Price List 621
