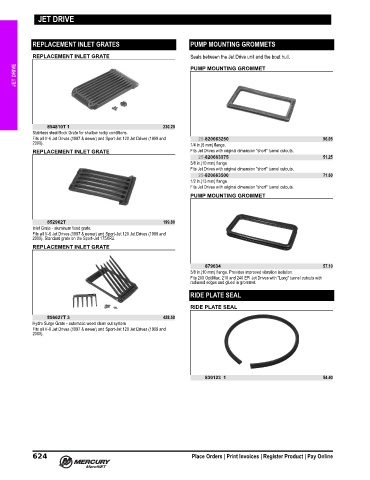

Page 637 - Rigging and Accessories Guide (2022) - 8M0187689

JET DRIVE

REPLACEMENT INLET GRATES PUMP MOUNTING GROMMETS

REPLACEMENT INLET GRATE Seals between the Jet Drive unit and the boat hull.
JET DRIVE PUMP MOUNTING GROMMET

854810T 1 230.20
Stainless steel Rock Grate for shallow rocky conditions.
Fits all V‑6 Jet Drives (1997 & newer) and Sport‑Jet 120 Jet Drives (1999 and 25-820663250 96.05
2000). 1/4 in.(6 mm) flange.
REPLACEMENT INLET GRATE Fits Jet Drives with original dimension "short" tunnel cutouts.
25-820663375 51.25
3/8 in.(10 mm) flange
Fits Jet Drives with original dimension "short" tunnel cutouts.
25-820663500 71.60
1/2 in.(13 mm) flange
Fits Jet Drives with original dimension "short" tunnel cutouts.
PUMP MOUNTING GROMMET

852962T 199.80
Inlet Grate ‑ aluminum fixed grate.
Fits all V‑6 Jet Drives (1997 & newer) and Sport‑Jet 120 Jet Drives (1999 and
2000). Standard grate on the Sport‑Jet 175XR2.
REPLACEMENT INLET GRATE

879634 57.10
3/8 in.(10 mm) flange. Provides improved vibration isolation.
Fits 200 OptiMax, 210 and 240 EFI Jet Drives with "Long" tunnel cutouts with
radiused edges and glued in grommet.
RIDE PLATE SEAL

RIDE PLATE SEAL
856627T 3 428.50
Hydro Surge Grate ‑ automatic weed clean out system
Fits all V‑6 Jet Drives (1997 & newer) and Sport‑Jet 120 Jet Drives (1999 and
2000).

830123 1 54.40

624 Place Orders | Print Invoices | Register Product | Pay Online
