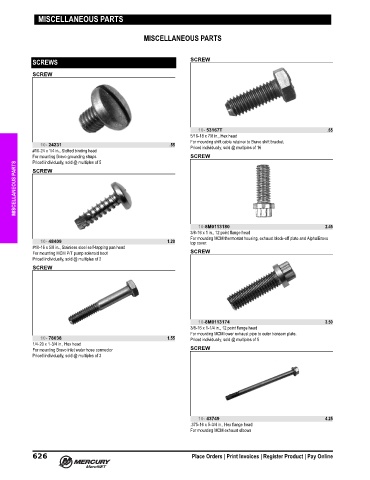

Page 639 - Rigging and Accessories Guide (2022) - 8M0187689

MISCELLANEOUS PARTS

MISCELLANEOUS PARTS

SCREWS SCREW

SCREW

10- 53167T .65
5/16‑18 x 7/8 in., Hex head
For mounting shift cable retainer to Bravo shift bracket.
10- 24231 .55
#10‑24 x 1/4 in., Slotted binding head Priced individually, sold @ multiples of 16
For mounting Bravo grounding straps SCREW
Priced individually, sold @ multiples of 5
MISCELLANEOUS PARTS
SCREW

10-8M0113180 2.45
3/8‑16 x 1 in., 12 point flange head
For mounting MCM thermostat housing, exhaust block‑off plate and Alpha/Bravo
10- 48409 1.20 top cover.
#10‑16 x 5/8 in., Stainless steel self‑tapping pan head
For mounting MCM P/T pump solenoid boot SCREW
Priced individually, sold @ multiples of 2
SCREW

10-8M0113174 3.50
3/8‑16 x 1‑1/4 in., 12 point flange head
For mounting MCM lower exhaust pipe to outer transom plate.
10- 78038 1.55 Priced individually, sold @ multiples of 5
1/4‑20 x 1‑3/4 in., Hex head
For mounting Bravo inlet water hose connector SCREW
Priced individually, sold @ multiples of 3

10- 43749 4.25
.375‑16 x 5‑3/4 in., Hex flange head
For mounting MCM exhaust elbows

626 Place Orders | Print Invoices | Register Product | Pay Online
