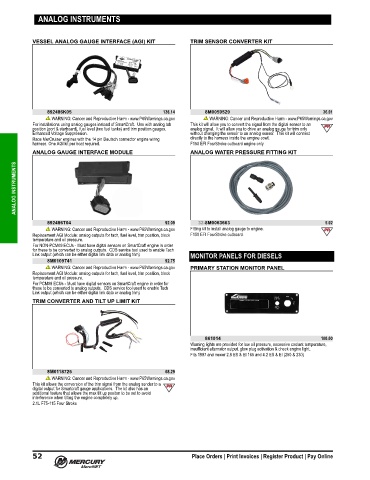

ANALOG INSTRUMENTS

VESSEL ANALOG GAUGE INTERFACE (AGI) KIT TRIM SENSOR CONVERTER KIT

892486K05 136.14 8M0059529 36.01
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
For installations using analog gauges instead of SmartCraft. Use with analog tab This kit will allow you to convert the signal from the digital sensor to an
position (port & starboard), fuel level (two fuel tanks) and trim position gauges. analog signal. It will allow you to drive an analog gauge for trim only
Enhanced Voltage Suppression. without changing the sensor to an analog sensor. This kit will connect
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring directly to the harness inside the emgine cowl.
harness. One AGI kit per boat required. F150 EFI FourStroke outboard engine only
ANALOG GAUGE INTERFACE MODULE ANALOG WATER PRESSURE FITTING KIT
ANALOG INSTRUMENTS

892486T04 92.09 32-8M0063663 5.02
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Fitting kit to install analog gauge to engine.
Replacement AGI Module: analog outputs for tach, fuel level, trim position, block F150 EFI FourStroke outboard.
temperature and oil pressure.
For NON‑PCM09 ECUs ‑ Must have digital sensors on SmartCraft engine in order
for these to be converted to analog outputs. CDS service tool used to enable Tach
Link output (which can be either digital link data or analog trim) MONITOR PANELS FOR DIESELS
8M0109741 92.75
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov PRIMARY STATION MONITOR PANEL
Replacement AGI Module: analog outputs for tach, fuel level, trim position, block
temperature and oil pressure.
For PCM09 ECUs ‑ Must have digital sensors on SmartCraft engine in order for
these to be converted to analog outputs. CDS service tool used to enable Tach
Link output (which can be either digital link data or analog trim)
TRIM CONVERTER AND TILT UP LIMIT KIT

861014 100.00
Warning lights are provided for low oil pressure, excessive coolant temperature,
insufficient alternator output, glow plug activation & check engine light.
Fits 1997 and newer 2.8 ES & EI 165 and 4.2 ES & EI (250 & 230)

8M0118725 68.29
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit allows the conversion of the trim signal from the analog sender to a
digital output for Smartcraft gauge applications. The kit also has an
additional feature that allows the max tilt up positon to be set to avoid
interference when tilting the engine completely up.
2.1L F75‑115 Four Stroke
