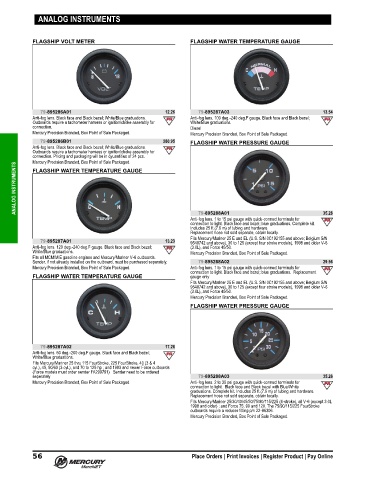

Page 69 - Rigging and Accessories Guide (2022) - 8M0187689

ANALOG INSTRUMENTS

FLAGSHIP VOLT METER FLAGSHIP WATER TEMPERATURE GAUGE

79-895286A01 12.26 79-895287A03 13.54
Anti‑fog lens. Black face and Black bezel; White/Blue graduations. Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel;
Outboards require a tachometer harness or ignition/choke assembly for White/Blue graduations.
connection. Diesel
Mercury Precision Branded, Box Point of Sale Packaged. Mercury Precision Branded, Box Point of Sale Packaged.
79-895286B01 280.95 FLAGSHIP WATER PRESSURE GAUGE
Anti‑fog lens. Black face and Black bezel; White/Blue graduations.
Outboards require a tachometer harness or ignition/choke assembly for
connection. Pricing and packaging will be in qyuantities of 24 pcs.
Mercury Precision Branded, Box Point of Sale Packaged.
ANALOG INSTRUMENTS
FLAGSHIP WATER TEMPERATURE GAUGE

79-895288A01
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for 35.26
connection to light. Black face and bezel; blue graduations. Complete kit.
Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
79-895287A01 13.23 9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
Anti‑fog lens. 120 deg.‑240 deg.F gauge. Black face and Black bezel; (3.0L), and Force 40/50.
White/Blue graduations. Mercury Precision Branded, Box Point of Sale Packaged.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards.
Sender, if not already installed on the outboard, must be purchased separately. 79-895288A02 29.56
Mercury Precision Branded, Box Point of Sale Packaged. Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and bezel; blue graduations. Replacement
FLAGSHIP WATER TEMPERATURE GAUGE gauge only
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Precision Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895287A02 17.26
Anti‑fog lens. 60 deg.‑200 deg.F gauge. Black face and Black bezel;
White/Blue graduations.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4
cyl.), 45, 50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards
(Force models must order sender FA299791) Sender need to be ordered
seperately 79-895288A03 35.26
Mercury Precision Branded, Box Point of Sale Packaged. Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel with Blue/White
graduations. Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Mercury Precision Branded, Box Point of Sale Packaged.
