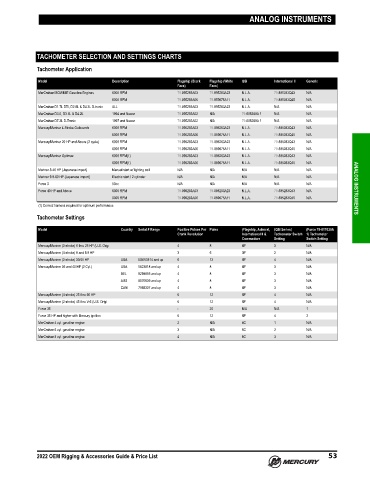

Page 66 - Rigging and Accessories Guide (2022) - 8M0187689

ANALOG INSTRUMENTS

TACHOMETER SELECTION AND SETTINGS CHARTS

Tachometer Application
Model Description Flagship (Black Flagship (White QSI International II Generic
Face) Face)
MerCruiser MCM/MIE Gasoline Engines 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
MerCruiser D1.7L DTI, D2.8L & D4.2L D-tronic ALL 79-895283A03 79-895283A23 N.L.A. N/A N/A
MerCruiser D3.0, D3.6L & D4.2L 1994 and Newer 79-895283A02 N/A 79-805289A 1 N/A N/A
MerCruiser D7.3L D-Tronic 1997 and Newer 79-895283A02 N/A 79-805289A 1 N/A N/A
Mercury/Mariner 4-Stroke Outboards 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mercury/Mariner 20 HP and Above (2 cycle) 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mercury/Mariner Optimax 6000 RPM(1) 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM(1) 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mariner 8-40 HP (Japanese import) Manual start w/ lighting coil N/A N/A N/A N/A N/A
Mariner 9.9-60 HP (Japanese import) Electric start / 2 cylinder N/A N/A N/A N/A N/A
Force 3 50cc N/A N/A N/A N/A N/A
Force 40 HP and Above 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A ANALOG INSTRUMENTS
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
(1) Correct harness required for optimum performance
Tachometer Settings

Model Country Serial # Range Positive Pulses Per Poles (Flagship, Admiral, (QSI Series) (Force 79-817030A
Crank Revolution International II & Tachometer Switch 1) Tachometer
Commodore Setting Switch Setting
Mercury/Mariner (2-stroke) 6 thru 25 HP (U.S. Orig 4 8 4P 3 N/A
Mercury/Mariner (4-stroke) 8 and 9.9 HP 3 6 3P 2 N/A
Mercury/Mariner (2-stroke) 30/40 HP USA 0G053314 and up 6 12 6P 4 N/A
Mercury/Mariner 35 and 40 HP (2 Cyl.) USA 5823918 and up 4 8 4P 3 N/A
BEL 9298955 and up 4 8 4P 3 N/A
AUS 8070639 and up 4 8 4P 3 N/A
CAN 7169337 and up 4 8 4P 3 N/A
Mercury/Mariner (4-stroke) 25 thru 90 HP 6 12 6P 4 N/A
Mercury/Mariner (2-stroke) 45 thru V-6 (U.S. Origi 6 12 6P 4 N/A
Force 35 - 20 N/A N/A 1
Force 35 HP and higher with Mercury ignition 6 12 6P 4 2
MerCruiser 4 cyl. gasoline engine 2 N/A 4C 1 N/A
MerCruiser 6 cyl. gasoline engine 3 N/A 6C 2 N/A
MerCruiser 8 cyl. gasoline engine 4 N/A 8C 3 N/A

2022 OEM Rigging & Accessories Guide & Price List 53
