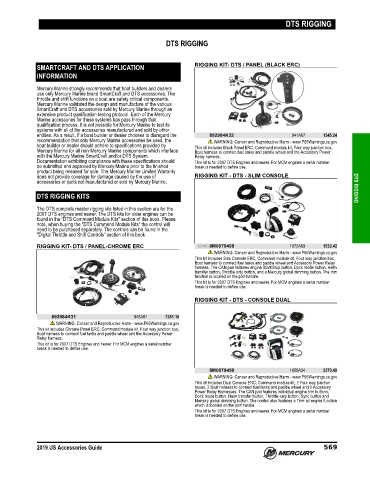

Page 582 - US ACCESSORIES GUIDE (2019)

DTS RIGGING

DTS RIGGING

SMARTCRAFT AND DTS APPLICATION RIGGING KIT- DTS / PANEL (BLACK ERC)
INFORMATION

Mercury Marine strongly recommends that boat builders and dealers
use only Mercury Marine brand SmartCraft and DTS accessories. The
throttle and shift functions on a boat are safety critical components.
Mercury Marine validated the design and manufacture of the various
SmartCraft and DTS accessories sold by Mercury Marine through an
extensive product qualification testing protocol. Each of the Mercury
Marine accessories for these systems has pass through that
qualification process. It is not possible for Mercury Marine to test its
systems with all of the accessories manufactured and sold by other
entities. As a result, if a boat builder or dealer chooses to disregard the 892984K32 941A67 1345.24
recommendation that only Mercury Marine accessories be used, the WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
boat builder or dealer should adhere to specifications provided by This kit includes Black Panel ERC, Command module kit, Four way junction box,
Mercury Marine for all non‑Mercury Marine components which interface Boat harness to connect fuel tanks and paddle wheel and the Accessory Power
with the Mercury Marine SmartCraft and/or DTS System. Relay harness.
Documentation exhibiting compliance with these specifications should This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
be submitted and approved by Mercury Marine prior to the finished break is needed to define use.
product being released for sale. The Mercury Marine Limited Warranty
does not provide coverage for damage caused by the use of RIGGING KIT - DTS - SLIM CONSOLE
accessories or parts not manufactured or sold by Mercury Marine. DTS RIGGING

DTS RIGGING KITS
The DTS complete master rigging kits listed in this section are for the
2007 DTS engines and newer. The DTS kits for older engines can be
found in the "DTS Command Module Kits" section of this book. Please
note, when buying the "DTS Command Module Kits" the control will
need to be purchased separately. The controls can be found in the
"Digital Throttle and Shift Controls" section of this book.
RIGGING KIT- DTS / PANEL-CHROME ERC 6946-8M0079498 1072A69 1532.42
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit includes Slim Console ERC, Command module kit, Four way junction box,
Boat harness to connect fuel tanks and paddle wheel and Accessory Power Relay
harness. The CAN pad features engine Start/Stop button, Dock mode button, Helm
transfer button, Throttle only button, and a Mercury global dimming button. The trim
function is located on the port handle.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use.
RIGGING KIT - DTS - CONSOLE DUAL

892984K31 945A81 1351.16
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit includes Chrome Panel ERC, Command module kit, Four way junction box,
Boat harness to connect fuel tanks and paddle wheel and the Accessory Power
Relay harness.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use.

8M0079499 1659A34 2370.49
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit includes Dual Console ERC, Command module kit, 2 Four way junction
boxes, 2 Boat harness to connect fuel tanks and paddle wheel and 2 Accessory
Power Relay Harnesses. The CAN pad features individual engine trim buttons,
Dock mode button, Helm transfer button, Throttle only button, Sync button and
Mercury global dimming button. The control also features a Trim‑all engine function
which is located on the port handle.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use.

2019 US Accessories Guide 569
