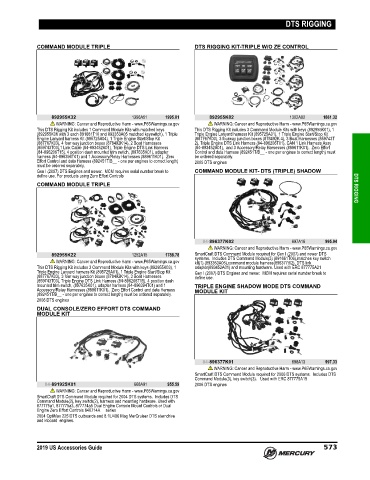

Page 586 - US ACCESSORIES GUIDE (2019)

DTS RIGGING

COMMAND MODULE TRIPLE DTS RIGGING KIT-TRIPLE W/O ZE CONTROL

892955K32 1396A51 1995.01 892955K02 1302A92 1861.32
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This DTS Rigging Kit includes 1 Command Module Kits with matched keys This DTS Rigging Kit includes 3 Command Module Kits with keys (892955K01), 1
(892955K06 with 3 each 891661T10 and 893353A05 matched keyswitch), 1 Triple Triple Engine Lanyard harness Kit (895725A01), 1 Triple Engine Start/Stop Kit
Engine Lanyard harness Kit (895725A04), 1 Triple Engine Start/Stop Kit (887767K03), 3 fourway junction boxes (878492K 4), 3 Boat Harnesses (859743T
(887767K03), 4 four way junction boxes (878492K14), 2 Boat Harnesses 2), Triple Engine DTS Link Harness (84‑896206T01), CAN 1 Link Harness Assy
(859743T03),1 Link Cable (84‑893452A01), Triple Engine DTS Link Harness (84‑893452A01), and 3 Accessory/Relay Harnesses (889611K01). Zero Effort
(84‑896206T15), 4 position dash mounted trim switch, (897635K01), adapter Control and data Harness (892451T/B__ ‑ one per engines to correct length) must
harness (84‑896394T01) and 1 Accessory/Relay Harnesses (889611K01). Zero be ordered separately.
Effort Control and data Harness (892451T/B__ ‑ one per engines to correct length) 2005 DTS engines
must be ordered separately.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to COMMAND MODULE KIT- DTS (TRIPLE) SHADOW
define use. For products using Zero Effort Controls
COMMAND MODULE TRIPLE DTS RIGGING

84-896377K02 697A16 995.94
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
892955K22 1252A15 1788.78 SmartCraft DTS Command Module required for Gen I (2007) and newer DTS
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov systems. Includes DTS Command Module(3) (891661T06),matches key switch
kIt(1) (893353A05),command module harness(896377t02), DTS link
This DTS Rigging Kit includes 3 Command Module Kits with keys (892955K03), 1 adapter(893452A01) and mounting hardware. Used with ERC 877775A21
Triple Engine Lanyard harness Kit (895725A01), 1 Triple Engine Start/Stop Kit Gen I (2007) DTS Engines and newer. MCM requires serial number break to
(887767K03), 3 four way junction boxes (878492K14), 3 Boat Harnesses define use.
(859743T03), Triple Engine DTS Link Harness (84‑896206T15), 4 position dash
mounted trim switch, (897635K01), adapter harness (84‑896394T01) and 1 TRIPLE ENGINE SHADOW MODE DTS COMMAND
Accessory/Relay Harnesses (889611K01). Zero Effort Control and data Harness MODULE KIT
(892451T/B__ ‑ one per engines to correct length) must be ordered separately.
2006 DTS engines
DUAL CONSOLE/ZERO EFFORT DTS COMMAND
MODULE KIT

84-896377K01 698A13 997.33
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for 2006 DTS systems. Includes DTS
Command Module(3), key switch(3). Used with ERC 877775A15
84-891925K01 668A91 955.59 2006 DTS engines
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for 2004 DTS systems. Includes DTS
Command Module(2), key switch(2), harness and mounting hardware. Used with
877775a1, 877775a3, 877774a5 Dual Engine Console Mount Controls or Dual
Engine Zero Effort Controls 840714A__ series
2004 OptiMax 225 DTS outboards and 8.1L/496 Mag MerCruiser DTS sterndrive
and inboard engines.

2019 US Accessories Guide 573
