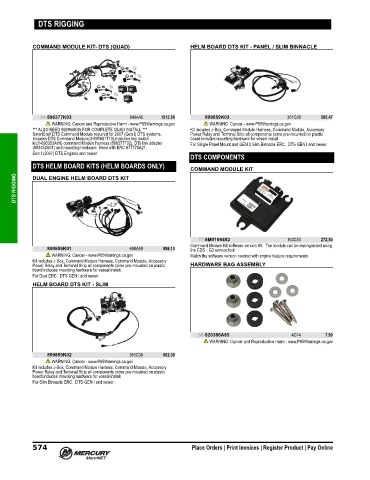

Page 587 - US ACCESSORIES GUIDE (2019)
P. 587
DTS RIGGING
COMMAND MODULE KIT- DTS (QUAD) HELM BOARD DTS KIT - PANEL / SLIM BINNACLE
84-896377K03 849A45 1213.50 899859K03 351C28 585.47
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
*** ALSO NEED 892955K05 FOR COMPLETE QUAD INSTALL *** Kit includes J‑Box, Command Module Harness, Command Module, Accessory
SmartCraft DTS Command Module required for 2007 (Gen I) DTS systems. Power Relay and Terminal Strip all components come pre‑mounted on plastic
Includes DTS Command Module(3‑891661T10),matches key switch board includes mounting hardware for vessel install
kit(1‑893353A06) command Module harness (896377T02), DTs link adapter For Single Panel Mount and GEN 2 Slim Binnacle ERC. DTS GEN I and newer.
(893452A01) and mounting hardware. Used with ERC 877775A21.
Gen I (2007) DTS Engines and newer
DTS COMPONENTS
DTS HELM BOARD KITS (HELM BOARDS ONLY) COMMAND MODULE KIT
DTS RIGGING DUAL ENGINE HELM BOARD DTS KIT
77-8M0109482 163C50 272.50
Command Module Kit software version 80. The module can be reprogramed using
899859K01 698A69 998.13 the CDS ‑ G3 service tool
WARNING: Cancer - www.P65Warnings.ca.gov Match the software version needed with engine feature requirements
Kit includes J‑Box, Command Module Harness, Command Module, Accessory
Power Relay and Terminal Strip all components come pre‑mounted on plastic HARDWARE BAG ASSEMBLY
board includes mounting hardware for vessel install.
For Dual ERC. DTS GEN I and newer.
HELM BOARD DTS KIT - SLIM
56-820386A85 4C74 7.90
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
899859K02 361C38 602.30
WARNING: Cancer - www.P65Warnings.ca.gov
Kit includes J‑Box, Command Module Harness, Command Module, Accessory
Power Relay and Terminal Strip all components come pre‑mounted on plastic
board includes mounting hardware for vessel install
For Slim Binnacle ERC. DTS GEN I and newer.
574 Place Orders | Print Invoices | Register Product | Pay Online
