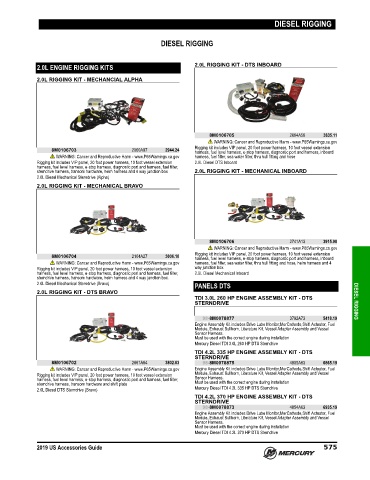

Page 588 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

DIESEL RIGGING

2.0L ENGINE RIGGING KITS 2.0L RIGGING KIT - DTS INBOARD

2.0L RIGGING KIT - MECHANCIAL ALPHA

8M0106705 2684A58 3835.11
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rigging kit includes VIP panel, 20 foot power harness, 10 foot vessel extension
8M0106703 2060A97 2944.24 harness, fuel level harness, e‑stop harness, diagnostic port and harness, inboard
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov harness, fuel filter, sea water filter, thru hull fitting and hose
Rigging kit includes VIP panel, 20 foot power harness, 10 foot vessel extension 2.0L Diesel DTS Inboard
harness, fuel level harness, e‑stop harness, diagnostic port and harness, fuel filter,
sterndrive harness, transom hardware, helm harness and 4 way junction box 2.0L RIGGING KIT - MECHANICAL INBOARD
2.0L Diesel Mechanical Sterndrive (Alpha)
2.0L RIGGING KIT - MECHANICAL BRAVO

8M0106706 2741A13 3915.90
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8M0106704 2104A27 3006.10 Rigging kit includes VIP panel, 20 foot power harness, 10 foot vessel extension
harness, fuel level harness, e‑stop harness, diagnostic port and harness, inboard
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov harness, fuel filter, sea water filter, thru hull fitting and hose, helm harness and 4
Rigging kit includes VIP panel, 20 foot power harness, 10 foot vessel extension way junction box.
harness, fuel level harness, e‑stop harness, diagnostic port and harness, fuel filter, 2.0L Diesel Mechanical Inboard
sterndrive harness, transom hardware, helm harness and 4 way junction box.
2.0L Diesel Mechanical Sterndrive (Bravo)
PANELS DTS
2.0L RIGGING KIT - DTS BRAVO
TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - DTS
STERNDRIVE DIESEL RIGGING

98-8M0078877 3792A73 5418.19
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift Actuator, Fuel
Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel
Sensor Harness.
Must be used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP DTS Sterndrive
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - DTS
STERNDRIVE
8M0106702 2661A84 3802.63 98-8M0078875 4805A63 6865.19
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift Actuator, Fuel
Rigging kit includes VIP panel, 20 foot power harness, 10 foot vessel extension Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel
harness, fuel level harness, e‑stop harness, diagnostic port and harness, fuel filter, Sensor Harness.
sterndrive harness, transom hardware and shift plate Must be used with the correct engine during installation
2.0L Diesel DTS Sterndrive (Bravo) Mercury Diesel TDI 4.2L 335 HP DTS Sterndrive
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - DTS
STERNDRIVE
98-8M0078873 4854A63 6935.19
Engine Assembly Kit includes Drive Lube Monitor,MerCathode,Shift Actuator, Fuel
Module, Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel
Sensor Harness.
Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 370 HP DTS Sterndrive

2019 US Accessories Guide 575
