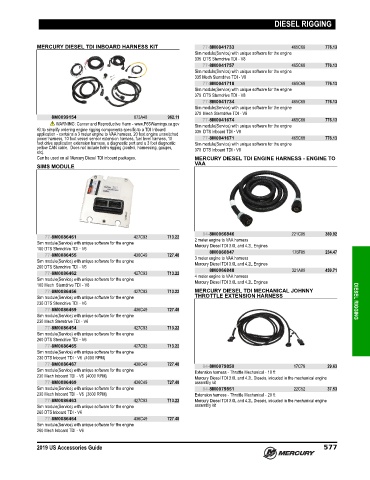

Page 590 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

MERCURY DIESEL TDI INBOARD HARNESS KIT 77-8M0041733 465C68 776.13
Sim module(Service) with unique software for the engine
335 DTS Sterndrive TDI ‑ V8
77-8M0041757 465C68 776.13
Sim module(Service) with unique software for the engine
335 Mech Sterndrive TDI ‑ V8
77-8M0041718 465C68 776.13
Sim module(Service) with unique software for the engine
370 DTS Sterndrive TDI ‑ V8
77-8M0041734 465C68 776.13
Sim module(Service) with unique software for the engine
370 Mech Sterndrive TDI ‑ V8
8M0099154 673A48 962.11 77-8M0041674 465C68 776.13
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sim module(Service) with unique software for the engine
Kit to simplify ordering engine rigging components specific to a TDI Inboard 335 DTS Inboard TDI ‑ V8
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10 77-8M0041671 465C68 776.13
foot drive application extension harness, a diagnostic port and a 3 foot diagnostic Sim module(Service) with unique software for the engine
yellow CAN cable. Does not include helm rigging (control, harnessing, gauges,
etc). 370 DTS Inboard TDI ‑ V8
Can be used on all Mercury Diesel TDI inboard packages. MERCURY DIESEL TDI ENGINE HARNESS - ENGINE TO
VAA
SIMS MODULE

84-8M0066846 221C95 369.92
77-8M0086461 427C93 713.22 2 meter engine to VAA harness
Sim module(Service) with unique software for the engine Mercury Diesel TDI 3.0L and 4.2L Engines
100 DTS Sterndrive TDI ‑ V6 175F85 234.47
8M0066847
77-8M0086455 436C49 727.48 3 meter engine to VAA harness
Sim module(Service) with unique software for the engine Mercury Diesel TDI 3.0L and 4.2L Engines
260 DTS Sterndrive TDI ‑ V6 321A80 459.71
8M0066848
77-8M0086462 427C93 713.22 4 meter engine to VAA harness
Sim module(Service) with unique software for the engine Mercury Diesel TDI 3.0L and 4.2L Engines
100 Mech Sterndrive TDI ‑ V6
77-8M0086456 427C93 713.22 MERCURY DIESEL TDI MECHANICAL JOHNNY
Sim module(Service) with unique software for the engine THROTTLE EXTENSION HARNESS
230 DTS Sterndrive TDI ‑ V6 DIESEL RIGGING
77-8M0086459 436C49 727.48
Sim module(Service) with unique software for the engine
230 Mech Sterndrive TDI ‑ V6
77-8M0086454 427C93 713.22
Sim module(Service) with unique software for the engine
260 DTS Sterndrive TDI ‑ V6
77-8M0086465 427C93 713.22
Sim module(Service) with unique software for the engine
230 DTS Inboard TDI ‑ V6 (4000 RPM)
77-8M0086467 436C49 727.48 84-8M0079850 17C78 29.63
Sim module(Service) with unique software for the engine Extension harness ‑ Throttle Mechanical ‑ 10 ft
230 Mech Inboard TDI ‑ V6 (4000 RPM) Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
77-8M0086469 436C49 727.48 assembly kit
Sim module(Service) with unique software for the engine 84-8M0079851 22C52 37.53
230 Mech Inboard TDI ‑ V6 (3500 RPM) Extension harness ‑ Throttle Mechanical ‑ 20 ft
77-8M0086463 427C93 713.22 Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
Sim module(Service) with unique software for the engine assembly kit
260 DTS Inboard TDI ‑ V6
77-8M0086464 436C49 727.48
Sim module(Service) with unique software for the engine
260 Mech Inboard TDI ‑ V6

2019 US Accessories Guide 577
