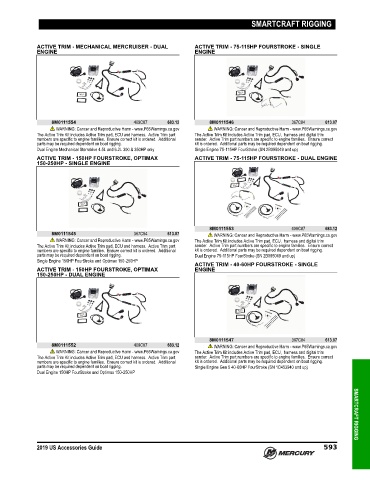

Page 606 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

ACTIVE TRIM - MECHANICAL MERCRUISER - DUAL ACTIVE TRIM - 75-115HP FOURSTROKE - SINGLE
ENGINE ENGINE

8M0111554 409C87 683.12 8M0111546 367C84 613.07
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim
numbers are specific to engine families. Ensure correct kit is ordered. Additional sender. Active Trim part numbers are specific to engine families. Ensure correct
parts may be required dependent on boat rigging. kit is ordered. Additional parts may be required dependent on boat rigging.
Dual Engine Mechanical Sterndrive 4.5L and 6.2L 300 & 350HP only Single Engine 75‑115HP FourStroke (SN 2B095049 and up)
ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX ACTIVE TRIM - 75-115HP FOURSTROKE - DUAL ENGINE
150-250HP - SINGLE ENGINE

8M0111553 409C87 683.12
8M0111545 367C84 613.07 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part sender. Active Trim part numbers are specific to engine families. Ensure correct
numbers are specific to engine families. Ensure correct kit is ordered. Additional kit is ordered. Additional parts may be required dependent on boat rigging.
parts may be required dependent on boat rigging. Dual Engine 75‑115HP FourStroke (SN 2B095049 and up)
Single Engine 150HP FourStroke and Optimax 150‑250HP
ACTIVE TRIM - 40-60HP FOURSTROKE - SINGLE
ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX ENGINE
150-250HP - DUAL ENGINE

8M0111547 367C84 613.07
8M0111552 409C87 683.12 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part sender. Active Trim part numbers are specific to engine families. Ensure correct
numbers are specific to engine families. Ensure correct kit is ordered. Additional kit is ordered. Additional parts may be required dependent on boat rigging.
parts may be required dependent on boat rigging. Single Engine Gen 5 40‑60HP FourStroke (SN 1C453940 and up)
Dual Engine 150HP FourStroke and Optimax 150‑250HP

2019 US Accessories Guide 593 SMARTCRAFT RIGGING
