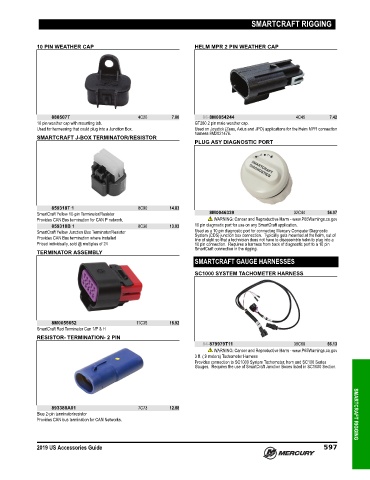

Page 610 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

10 PIN WEATHER CAP HELM MPR 2 PIN WEATHER CAP

888507T 4C20 7.00 86-8M0054244 4C45 7.42
10 pin weather cap with mounting tab. GT280 2 pin male weather cap.
Used for harnessing that could plug into a Junction Box. Used on Joystick (Zeus, Axius and JPO) applications for the Helm MPR connection
harness 8M2021476.
SMARTCRAFT J-BOX TERMINATOR/RESISTOR
PLUG ASY DIAGNOSTIC PORT

859318T 1 8C90 14.83
SmartCraft Yellow 10‑pin Terminator/Resistor 8M0046339 32C44 54.07
Provides CAN Bus termination for CAN P network. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
859318B 1 8C36 13.93 10 pin diagnostic port for use on any SmartCraft application.
SmartCraft Yellow Junction Box Terminator/Resistor Used as a 10 pin diagnostic port for connecting Mercury Computer Diagnostic
Provides CAN Bus termination where installed System (CDS) junction box connection. Typically gets mounted at the helm, out of
line of sight so that a technician does not have to disassemble helm to plug into a
Priced individually, sold @ multiples of 24 10 pin connection. Requires a harness from back of diagnostic port to a 10 pin
SmartCraft connection in the rigging.
TERMINATOR ASSEMBLY
SMARTCRAFT GAUGE HARNESSES

SC1000 SYSTEM TACHOMETER HARNESS

8M0055652 11C35 18.92
SmartCraft Red Terminator Can 1/P & H
RESISTOR- TERMINATION- 2 PIN
84-879979T11 39C68 66.13
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3 ft. (.9 meters) Tachometer Harness
Provides connection to SC1000 System Tachometer, horn and SC100 Series
Gauges. Requires the use of SmartCraft Junction Boxes listed in SC1000 Section.

893388A01 7C73 12.88
Blue 2‑pin terminator/resistor SMARTCRAFT RIGGING
Provides CAN bus termination for CAN Networks.

2019 US Accessories Guide 597
