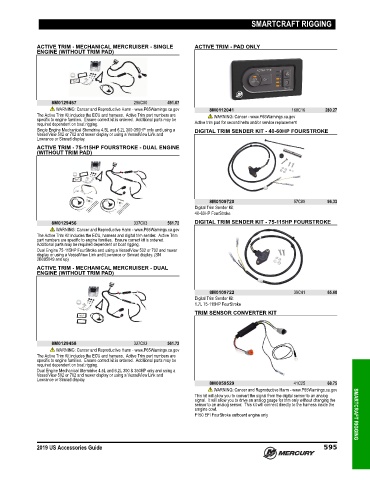

Page 608 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

ACTIVE TRIM - MECHANICAL MERCRUISER - SINGLE ACTIVE TRIM - PAD ONLY
ENGINE (WITHOUT TRIM PAD)

8M0129457 295C00 491.67
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 8M0112041 168C16 280.27
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are WARNING: Cancer - www.P65Warnings.ca.gov
specific to engine families. Ensure correct kit is ordered. Additional parts may be
required dependent on boat rigging. Active trim pad for second helm and/or service replacement
Single Engine Mechanical Sterndrive 4.5L and 6.2L 300‑350HP only and using a DIGITAL TRIM SENDER KIT - 40-60HP FOURSTROKE
VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.
ACTIVE TRIM - 75-115HP FOURSTROKE - DUAL ENGINE
(WITHOUT TRIM PAD)

8M0109720 57C80 96.33
Digital Trim Sender Kit
40‑60HP FourStroke

8M0129456 337C03 561.72 DIGITAL TRIM SENDER KIT - 75-115HP FOURSTROKE
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Active Trim Kit includes the ECU, harness and digital trim sender. Active Trim
part numbers are specific to engine families. Ensure correct kit is ordered.
Additional parts may be required dependent on boat rigging.
Dual Engine 75‑115HP FourStroke and using a VesselView 502 or 702 and newer
display or using a VesselView Link and Lowrance or Simrad display. (SN
2B095049 and up)
ACTIVE TRIM - MECHANICAL MERCRUISER - DUAL
ENGINE (WITHOUT TRIM PAD)

8M0109722 39C41 65.68
Digital Trim Sender Kit
1.7L 75‑115HP FourStroke
TRIM SENSOR CONVERTER KIT

8M0129458 337C03 561.72
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are
specific to engine families. Ensure correct kit is ordered. Additional parts may be
required dependent on boat rigging.
Dual Engine Mechanical Sterndrive 4.5L and 6.2L 300 & 350HP only and using a
VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.
8M0059529 41C25 68.75
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit will allow you to convert the signal from the digital sensor to an analog
signal. It will allow you to drive an analog gauge for trim only without changing the
sensor to an analog sensor. This kit will connect directly to the harness inside the
emgine cowl.
F150 EFI FourStroke outboard engine only SMARTCRAFT RIGGING

2019 US Accessories Guide 595
