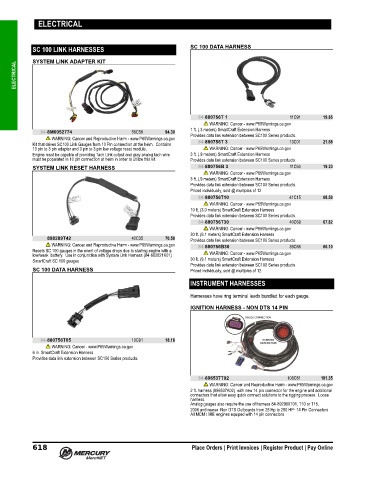

Page 631 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

SC 100 LINK HARNESSES SC 100 DATA HARNESS

SYSTEM LINK ADAPTER KIT
ELECTRICAL

84-880756T 1 11C91 19.85
WARNING: Cancer - www.P65Warnings.ca.gov
84-8M0052774 56C58 94.30 1 ft. (.3 meters) SmartCraft Extension Harness
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Provides data link extension between SC100 Series products.
Kit that drives SC100 Link Gauges from 10 Pin connection at the helm. Contains 84-880756T 3 13C01 21.68
10 pin to 3 pin adapter and 3 pin to 3 pin low voltage reset module. WARNING: Cancer - www.P65Warnings.ca.gov
Engine must be capable of providing Tach Link output and gray analog tach wire 3 ft. (.9 meters) SmartCraft Extension Harness
must be populated in 10 pin connection at helm in order to utilize this kit. Provides data link extension between SC100 Series products.
SYSTEM LINK RESET HARNESS 84-880756B 3 11C60 19.33
WARNING: Cancer - www.P65Warnings.ca.gov
3 ft. (.9 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
Priced individually, sold @ multiples of 12
84-880756T10 41C15 68.58
WARNING: Cancer - www.P65Warnings.ca.gov
10 ft. (3.0 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
84-880756T30 40C69 67.82
WARNING: Cancer - www.P65Warnings.ca.gov
30 ft. (9.1 meters) SmartCraft Extension Harness
898289T42 42C35 70.58 Provides data link extension between SC100 Series products.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 84-880756B30 39C66 66.10
Resets SC 100 gauges in the event of voltage drops due to starting engine with a WARNING: Cancer - www.P65Warnings.ca.gov
low/weak battery. Use in conjunction with System Link Harness (84‑892821K01)
SmartCraft SC 100 gauges 30 ft. (9.1 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
SC 100 DATA HARNESS Priced individually, sold @ multiples of 12

INSTRUMENT HARNESSES
Harnesses have ring terminal leads bundled for each gauge.

IGNITION HARNESS - NON DTS 14 PIN

84-880756T05 10C91 18.18
WARNING: Cancer - www.P65Warnings.ca.gov
6 in. SmartCraft Extension Harness
Provides data link extension between SC100 Series products.

84-896537T02 108C81 181.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
2 ft. harness (896537A02) with new 14 pin connector for the engine and additional
connectors that allow easy quick connect solutions to the rigging process. Loose
harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
